Starter Motor 21163-7025 for Kawasaki FX801V – Verified Fitment

Variant-Aware Fitment — we cross-check pinion tooth count and mounting pattern against your exact Kawasaki FX engine serial before shipping.

Technical Specifications

Application Suitability

Why the Same Starter Part Number Fits Four Different Machine Brands

The engine platform determines the starter, not the badge on the mower deck.

A Starter Motor for Kawasaki FX801V / FX850V cross reference fitment issue often starts with a buyer searching by mower model alone. John Deere, Toro, and New Holland all build machines around the same Kawasaki FX-series engines. The starter mates to the engine block and flywheel, not to the chassis. Yet cross-reference tables circulating among aftermarket sellers frequently copy errors forward, listing models that share a base number but differ in pinion depth or solenoid connector. [NEED_CITE: small engine starter interchange accuracy in aftermarket catalogs] I have pulled units where the spline tooth count was wrong by two teeth — the motor spun freely and never engaged the ring gear.

Mapping the Kawasaki FX-Series Starter Fitment Range

This Starter Motor for Kawasaki FX801V / FX850V cross reference fitment covers the full FX vertical-twin family from the FX481V up through the FX1000V. The base mounting pattern and bolt circle remain consistent across the range, but production revisions introduced variant differences in pinion gear engagement depth and terminal post orientation. A unit pulled from an FX730V may physically bolt onto an FX850V yet fail to mesh with the flywheel ring gear. We verify engine serial against the OEM drawing revision to confirm dimensional compliance before dispatch.

Interface Verification Points That Separate a Fit from a Fail

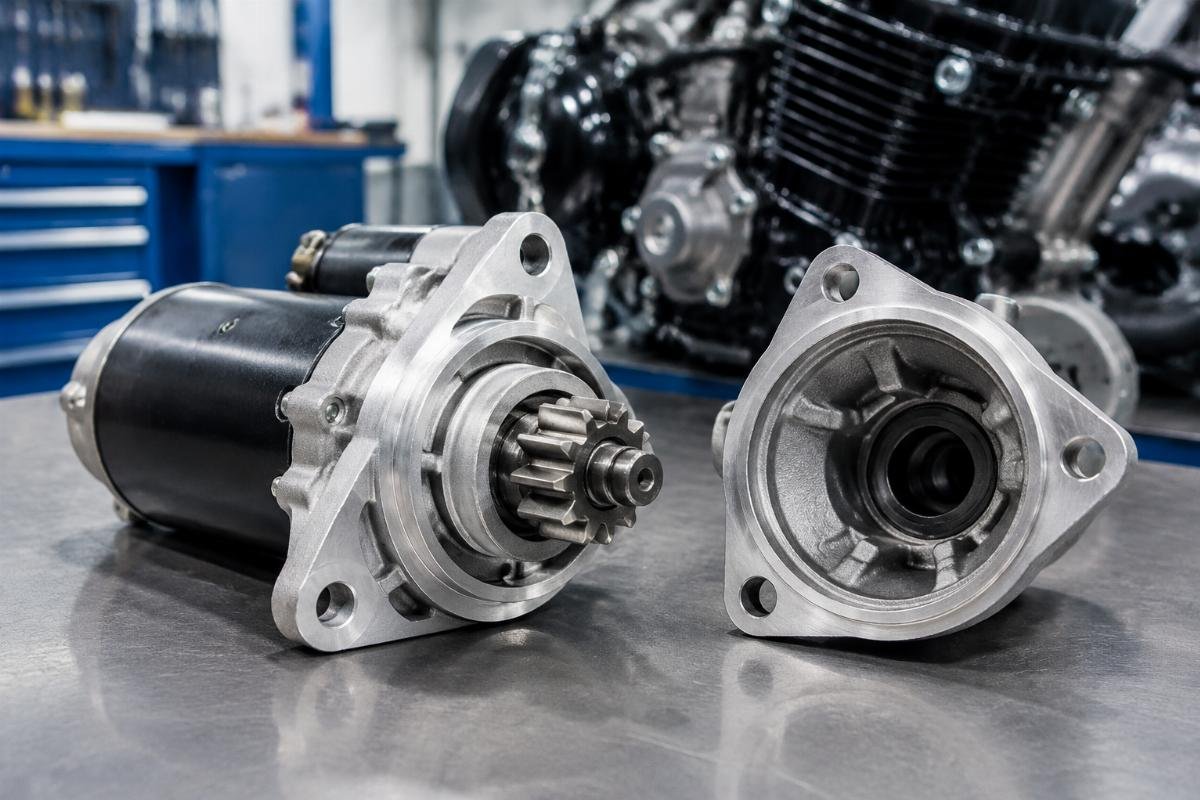

Before confirming any Starter Motor for Kawasaki FX801V / FX850V cross reference fitment, three physical interfaces demand measurement. The pinion gear tooth count must match the flywheel ring gear — a mismatch means silent cranking with no engine turnover. Mounting bolt pattern and boss diameter determine whether the starter seats flush against the block without shimming. The solenoid connector type and terminal orientation dictate whether the existing wiring harness reaches without modification. [NEED_CITE: starter motor installation interface verification procedures for commercial turf engines] These checks apply whether you are replacing a unit on a Z930R or standardizing across a mixed-brand fleet.

Reading the Specifications That Matter in the Field

The Class H insulation rating means the windings tolerate sustained operating temperatures up to 180°C, which matters in commercial mowing where engines run at governed speed for hours in high ambient heat. Insulation breakdown is a primary failure mode in starter motors subjected to repeated high-current cranking cycles in hot conditions. The ISO 9001 production standard and ISO 5801 testing framework ensure the unit meets dimensional and electrical performance criteria consistently across production batches. ASTM B117 salt-spray exposure testing validates corrosion resistance on the housing and terminal connections, relevant for machines stored outdoors or operated in coastal environments. These specifications collectively define a unit built for fleet-duty cycling rather than occasional residential use.

What Happens When You Install the Wrong Variant

An incorrectly matched starter does not always announce itself immediately. A pinion with the wrong engagement depth may partially mesh, producing a grinding noise that damages the flywheel ring gear over several weeks before complete failure occurs. A solenoid connector that appears compatible but has reversed polarity can energize the motor in the wrong direction, stripping teeth off the pinion. The hidden cost is not the price of the replacement unit — it is the labor for removal and reinstallation, the potential flywheel repair, and the machine downtime while the correct part is sourced. [NEED_CITE: commercial turf equipment downtime cost from incorrect starter fitment]

Why Source This Starter Here

Our selected production lines and qualified sourcing partners operate under one account and one warranty framework, so a starter for a John Deere Z960M and a seal kit for a completely different machine ship on the same terms. The Guangzhou warehouse stocks common FX-series starters for fast dispatch when a mower is already down. We verify cross-references against superseded numbers like 21163-7021 and 99996-6121 rather than copying from unverified tables. A sample unit ships for physical fitment trial before you commit to a bulk fleet order. Our technical team confirms compatibility from a machine model, a photograph, or a worn nameplate image.

Documentation & Verification

• Commercial invoice listing each starter with its verified engine serial compatibility range
• Cross-reference sheet for 21163-7025 and superseded numbers marked as reference only
• Dimensional check record covering pinion tooth count, bolt circle, and terminal orientation
• Warranty terms specifying coverage period and manufacturing defect conditions
• Packing photographs showing protective wrapping around pinion gear and solenoid connector
• HS code and customs documentation support for international shipment

Fitment Check Before Installation

• Compare pinion gear tooth count on the new starter against the removed unit and flywheel ring gear
• Verify mounting bolt pattern spacing and boss diameter seat flush against the engine block

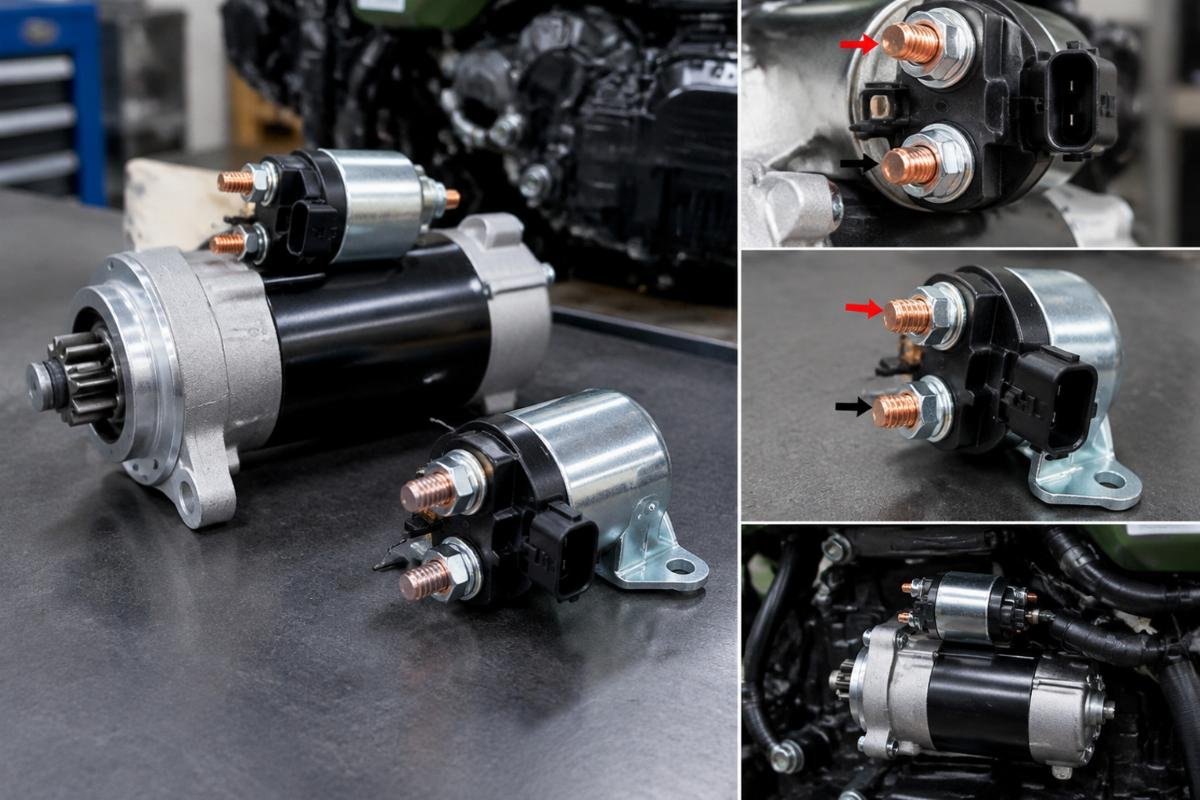

• Confirm solenoid connector type and terminal post orientation match the existing wiring harness
• Perform a bench test of pinion engagement throw before bolting the starter to the block
• If the old unit is unavailable, provide engine serial number for variant confirmation
• Report any dimensional mismatch before installation to arrange exchange without labor waste

Requesting a Fitment Confirmation

Provide the exact machine model, engine serial number, or a photograph of the existing nameplate so we can verify the Starter Motor for Kawasaki FX801V / FX850V cross reference fitment against our cross-reference database. If the nameplate is worn or painted over, the machine model and approximate production year give us enough to narrow the engine variant. For fleet orders, send the full model list and we return a verified compatibility matrix with sample availability.

Frequently Asked Questions

Q: How do I confirm this starter fits my specific machine when I only have the model number and no readable part number? A: Send the machine model and, if visible, the engine serial from the Kawasaki engine block stamping. The mower model alone narrows the engine family, and the serial pinpoints the exact production variant. We cross-check pinion engagement depth and connector type against that specific build and confirm fitment before shipping.

Q: Are 21163-7025 and 21163-7021 interchangeable, or do they apply to different engine variants? A: These numbers cover overlapping but not identical fitment ranges within the Kawasaki FX series. Some engine variants accept both, while others require one specific revision. We verify against your engine serial to confirm which number applies. Both are listed as cross-reference only for identification purposes.

Q: Why do different sellers list different compatible models for the same part number? A: Cross-reference tables are often copied between listings without independent verification. Superseded numbers, production-year variants, and engine serial breakpoints create differences that generic tables miss. We build our compatibility data from OEM drawing revisions and physical interface measurements rather than aggregated online catalogs.

Q: Can I order a sample to test-fit before buying for the whole fleet? A: Yes. A single sample unit ships under the same warranty terms as a bulk order. Install it on one machine, confirm engagement and cranking performance, then commit to the fleet quantity. This avoids the cost of discovering a fitment mismatch across dozens of machines simultaneously.

Q: What if my old starter has a number not listed in your cross-reference table? A: Send a photograph of the number or the starter itself. Superseded and discontinued numbers exist outside published tables. We cross-check the physical dimensions — pinion tooth count, bolt pattern, and connector — against our reference library to identify the correct replacement regardless of the printed number.
