Series-Specific Cylinder Head – Fits Kubota V3300 M8200 M9000

Verified Variant Mapping — Superseded references like 1G545-0302-8 and 1G513-0302-0 mapped against V3300 sub-codes to prevent port mismatch during installation.

Technical Specifications

Application Suitability

Why the Same Part Number Ships in Four Variants

Engine suffix codes determine port geometry, valve seat position, and bolt pattern — not just the base number.

I have walked through too many V3300 teardowns in Guangzhou where the cylinder head looked right on the bench but leaked combustion gas after torque-down. The reason almost always traces back to a suffix variant: the same base casting number covers builds with different valve seat ring positions, intake runner profiles, or injector bore depths. Older parts catalogs copy cross-reference tables forward without flagging these differences, so a buyer ordering from a superseded number ends up with a cylinder head that bolts on but fails the compression test [NEED_CITE: Kubota V3300 engine variant identification procedures for aftermarket parts ordering].

Mapping Every V3300 Sub-Variant to the Correct Cylinder Head

The V3300 family spans naturally aspirated, direct-injection, and turbocharged builds — each demanding a specific cylinder head for Kubota V3300 configuration. Sub-variants like V3300-E2B-BGDE-1 through -4, V3300-E3BG-ABR-1, and V3300-T-E2B-THOMAS-1 differ in combustion chamber volume, coolant passage routing, or valve train geometry. Confirming the full engine code from the nameplate or service record eliminates guesswork and ensures the replacement cylinder head matches the original build specification.

Interface and Mounting Verification Before Fitment

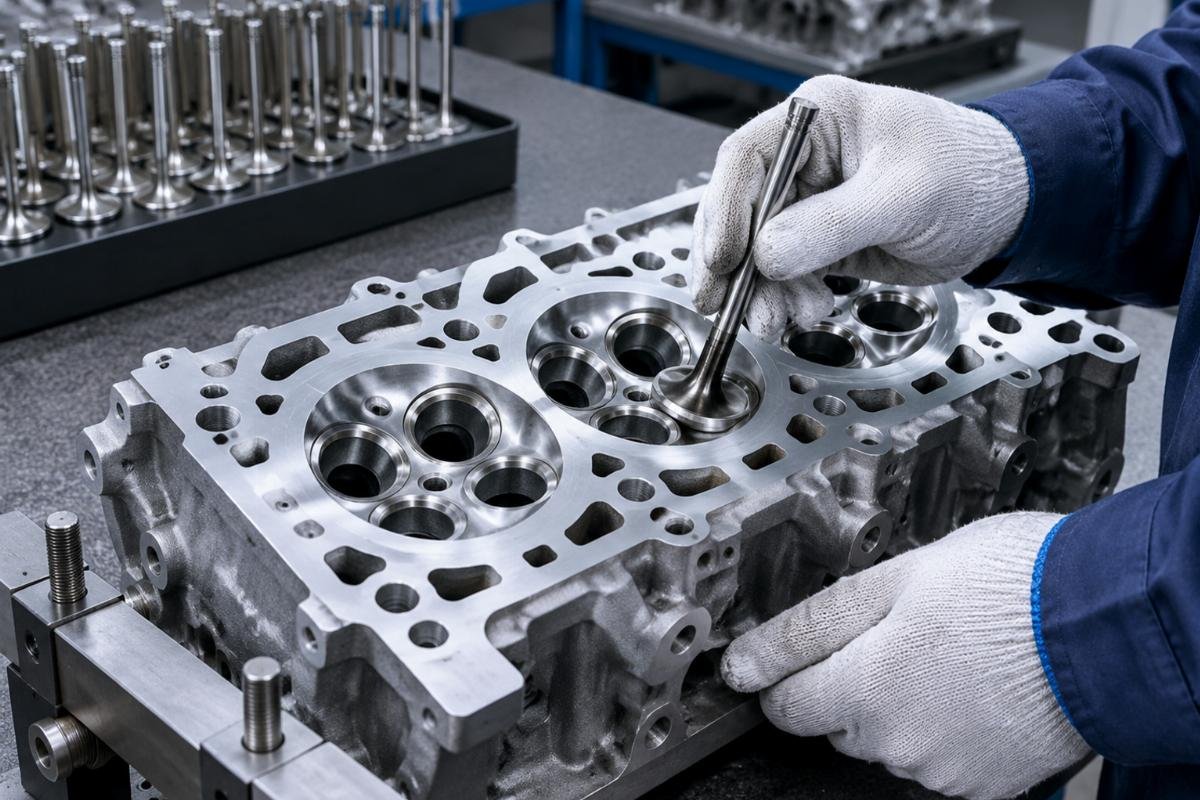

Port position, head bolt spacing, and coolant passage alignment must match the block exactly. Even a small offset in valve seat ring placement causes compression loss or valve-to-piston interference. I always compare the replacement head against the removed unit — checking intake and exhaust port cross-sectional area, injector bore angle, and thermostat housing mounting pattern. For buyers holding only a machine model like M9000DTL with no readable nameplate, we cross-reference the machine serial range to narrow the engine variant before shipping any cylinder head for Kubota V3300 application [NEED_CITE: cylinder head flatness and port alignment inspection methods for diesel engines].

Reading the Specifications That Matter in the Field

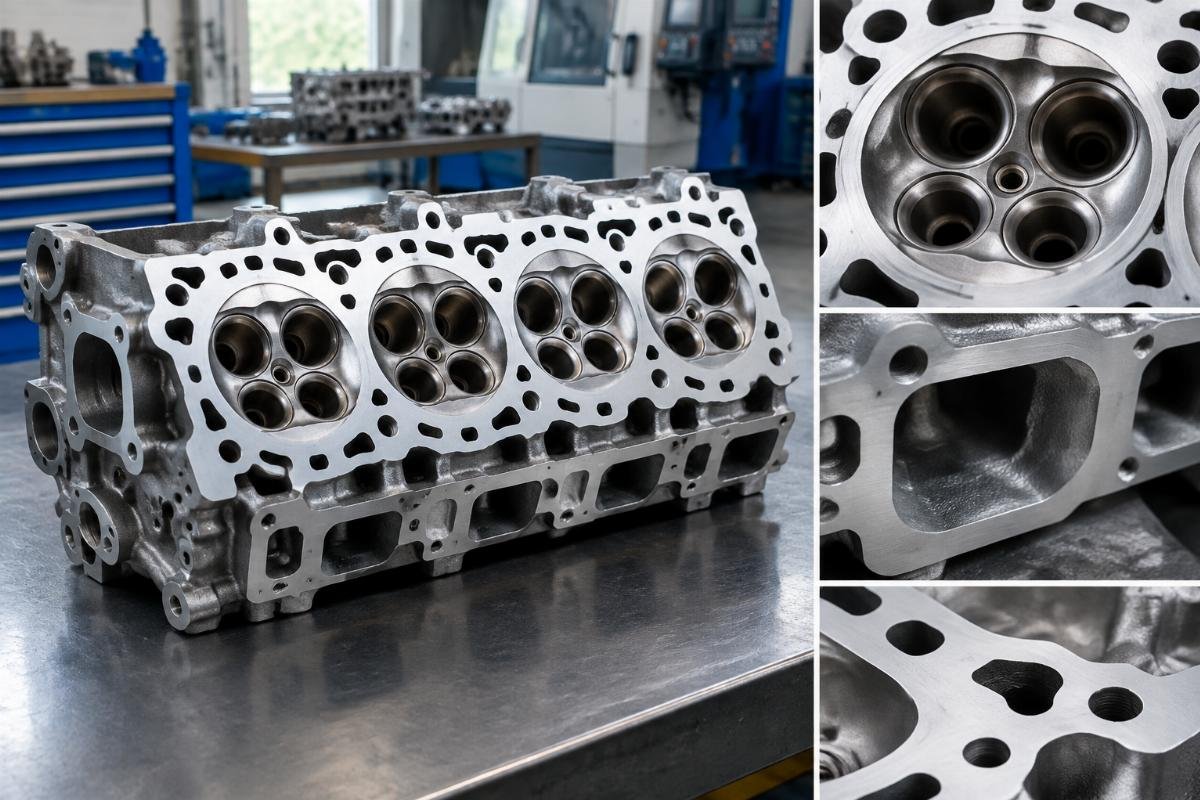

The A380-equivalent high-silicon aluminum alloy provides dimensional stability under the thermal cycling that agricultural and quarry engines endure. Silicon content reduces thermal expansion, keeping head gasket clamp load consistent across cold-start and full-load temperature swings. CNC-machined sealing surfaces held to ±0.02 mm flatness mean the head gasket compresses evenly when torqued to factory specification — no localized lifting at the fire ring. Intake and exhaust ports retain OEM cross-sectional area and runner profile, preserving volumetric efficiency so the engine breathes as designed. The electrostatic epoxy primer meets ISO 9227 NSS requirements of 720 hours minimum, protecting external surfaces from salt-air corrosion in port-side and coastal farming environments.

The Hidden Cost of a Variant Mismatch

A cylinder head that physically bolts down but carries the wrong valve seat position or port profile forces the machine back into the shop within hours. The first sign is usually low compression on one or two cylinders, followed by coolant migration into the combustion chamber. By that point the head gasket is already damaged, the injector sleeves may need replacement, and the downtime compounds. Buyers who skip variant confirmation end up paying for return freight, a second gasket set, and another round of labor — all avoidable with a five-minute serial number check before ordering [NEED_CITE: cost impact of incorrect cylinder head variant installation in diesel tractor engines].

Why Source This Cylinder Head Here

Our own production lines and qualified sourcing partners operate under one account with one warranty, so a cylinder head for Kubota V3300 ships with the same QC terms regardless of which facility cast it. Eight product categories under one roof mean head gaskets, valve stem seals, injector sleeve O-rings, and head bolt sets can ride in the same carton. Orders start from a single piece — no minimum blocking an emergency repair. Cross-reference verification covers superseded and alternate numbers, catching catalog errors that propagate between sellers. A sample unit is available for physical fitment confirmation before any bulk commitment, so distributors can validate port geometry and bolt pattern against their own shop inventory.

Documentation & Verification

• Commercial invoice listing each cylinder head variant code and engine compatibility note
• Cross-reference sheet mapping superseded numbers with "reference only" designation
• Dimensional inspection record covering flatness, port spacing, and bolt hole position
• Warranty terms specifying coverage scope for manufacturing defects
• Packing photographs showing protective packaging before crate closure
• HS code and customs classification support for international shipment

Fitment Check Before Installation

• Compare port positions and coolant passage layout against the removed head
• Verify valve seat ring depth and injector bore angle with calibrated gauges
• Dry-fit the head on the block to confirm bolt hole alignment before gasket placement
• Check thermostat housing mounting pattern and sensor boss locations
• If any dimension deviates, halt installation and report for resolution

Request a Compatibility Confirmation

Send the full engine code from the nameplate or a photograph of the existing cylinder head casting number. If the nameplate is worn or painted over, provide the machine model and serial number so we can narrow the V3300 variant through production records. For bulk orders, request a sample unit to verify fitment in your shop before committing to volume.

Frequently Asked Questions

Q: How do I confirm this cylinder head fits my specific Kubota tractor model and engine variant? A: Provide the full engine code printed on the nameplate — for example V3300-DI-T or V3300-E2B-BGDE-1. The suffix determines valve seat configuration and port geometry. If the plate is unreadable, send the machine model and serial number so we can trace the original build specification through production records.

Q: My part number is superseded — does the replacement number still fit my machine? A: Superseded numbers often map to the same physical part, but variant differences within a base number can cause fitment failure. We verify each superseded reference against your engine serial range to confirm whether the replacement cylinder head matches your specific build, rather than relying on generic cross-reference tables.

Q: Why does the same base part number appear with several different suffix variants? A: Kubota updated the V3300 engine family across multiple production phases, adjusting valve seat position, injector bore depth, or coolant passage routing between variants. Each change received a distinct suffix. Ordering by base number alone risks receiving a head that bolts on but fails compression testing.

Q: I only have the machine model with no readable part number — can you still identify the correct cylinder head? A: Yes. Machine models like M8200DT or M9000HDC correspond to known engine serial ranges. Share the machine model and any visible serial fragment, and we narrow the cylinder head variant from production data. A photograph of the block or existing head casting helps confirm the match before shipping.

Q: Can I order a sample to verify fitment before placing a larger order? A: A single sample unit ships for physical fitment verification. Check port alignment, bolt pattern, and valve seat positioning against your shop's reference engine. Once fitment is confirmed, the bulk order follows with the same specifications and quality standards.
