Glow Plug 8-98290-755-0 | Direct Fit for Isuzu 4JJ1/4HK1

Variant-Level Fitment — Every glow plug is verified against the specific engine serial and variant code before dispatch to prevent connector mismatch.

Technical Specifications

Application Suitability

When the Cross-Reference Table Leads You to the Wrong Glow Plug

The part number on your old glow plug may no longer match what your engine actually needs.

Superseded numbers and variant-specific plug designs within the same base engine family are a constant source of misfires and relay damage. I once had a customer order based on an old service manual listing, only to find the connector terminal configuration differed between early and late production runs of the same engine. The machine sat cold-start dead for days while the correct set was sourced [NEED_CITE: glow plug variant differences across engine serial ranges in Isuzu 4-cylinder diesel platforms]. Copied cross-reference tables between sellers carry forward errors that compound the problem, and one wrong plug in a four-piece set can trigger relay overcurrent on the entire circuit.

Engine Variant Coverage That Goes Beyond the Base Model Number

The Isuzu 4JJ1 and 4HK1 engine families span multiple sub-variants — 4HK1-TCS, 4HK1-TCN, and naturally aspirated versions — each potentially requiring a different glow plug specification. This Glow Plug for Isuzu 4JJ1 / 4HK1 is verified not just by the base engine model but by serial range and variant code. Thread pitch, seating depth, and electrical connector type are checked against the specific variant before the set leaves the warehouse. A plug that physically threads into the cylinder head but has the wrong connector terminal will leave the machine inoperable regardless of how quickly it was shipped.

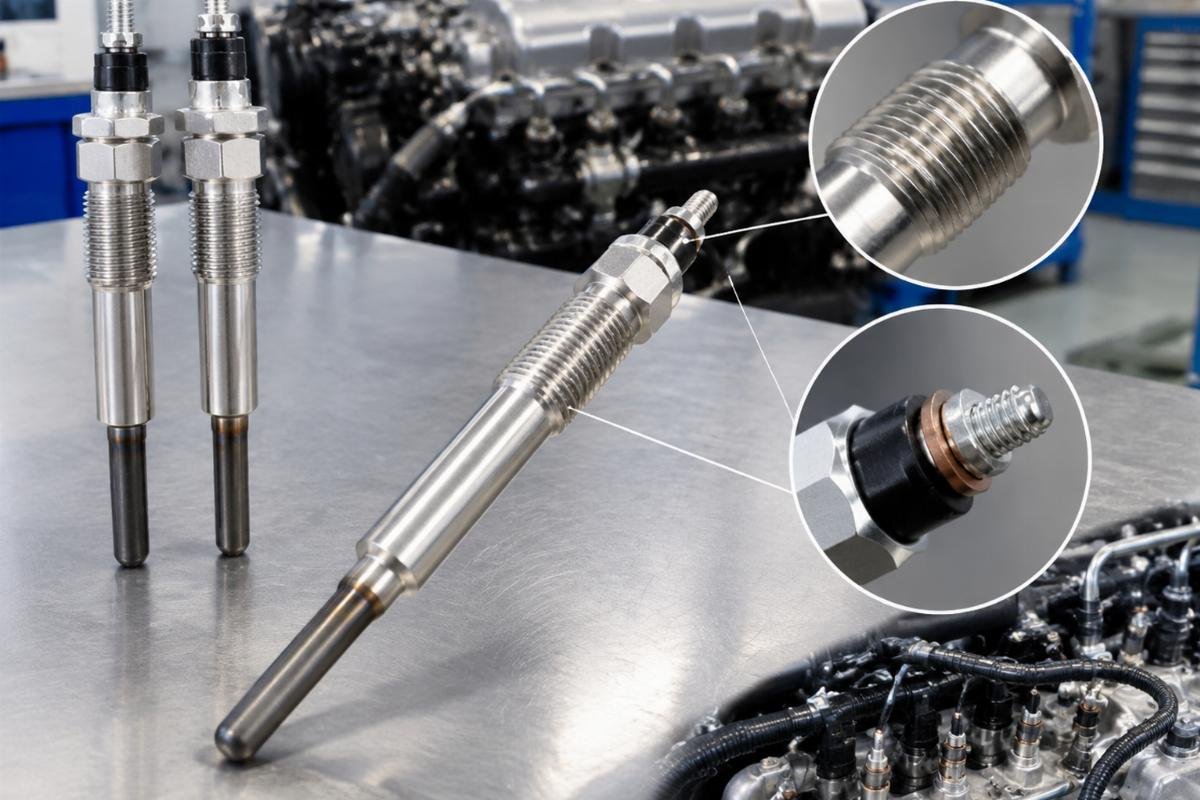

Connector Type and Resistance Matching for Reliable Cold Starts

The internal resistance of these plugs is held at 0.95 ± 0.05 Ω, which directly affects glow relay loading. A plug with resistance outside this tolerance can cause the relay module to overheat or fail to energize the remaining plugs in the circuit [NEED_CITE: glow relay overcurrent failure patterns in multi-plug diesel starting systems]. The dual-coil ceramic heating element is designed to reach 1000°C within 12 seconds across the 11V–14.5V operating range, providing consistent pre-heating across all four cylinders. This matters particularly in sub-zero operating conditions where port-side refrigerated trucks and mining support vehicles need reliable cold-start performance without extended cranking that drains the battery bank.

Electrical and Thermal Parameters That Define Service Life

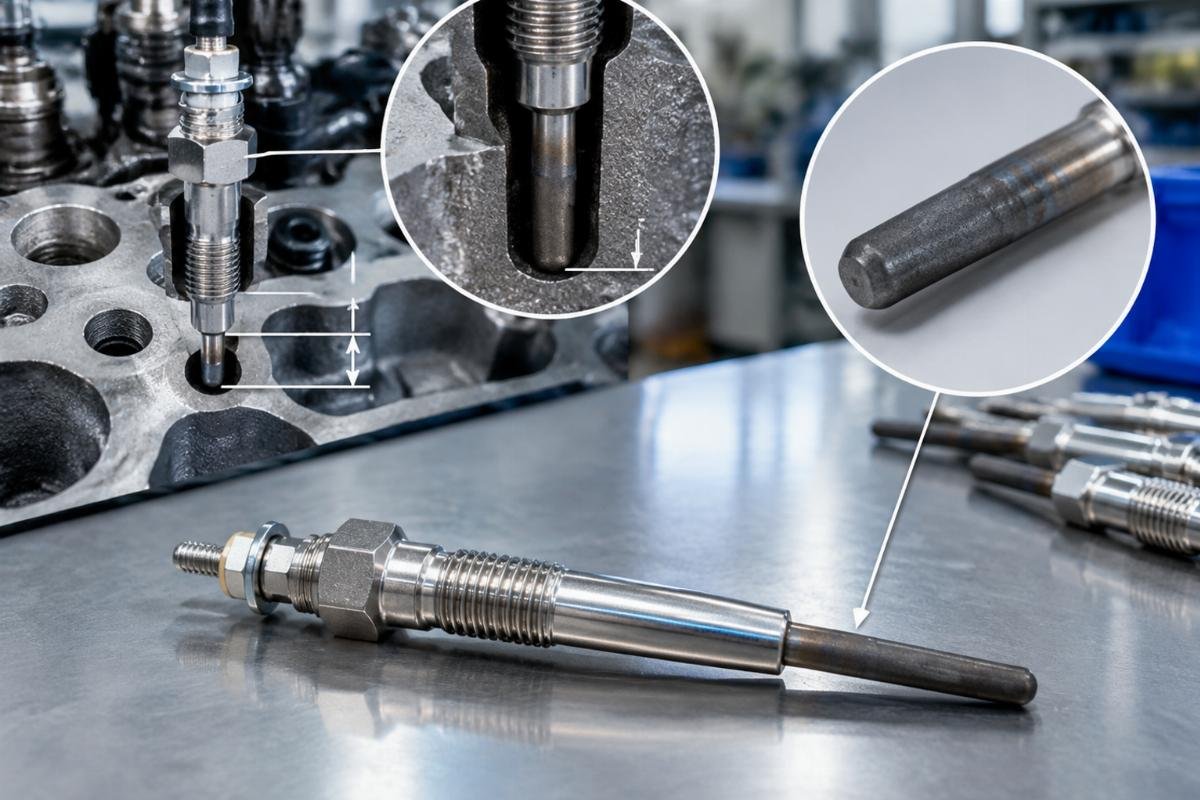

The AISI 304 stainless steel sheath provides corrosion resistance in the combustion chamber environment, where condensate and sulfur compounds attack lower-grade materials over repeated heat cycles. The 18–22 N·m torque specification ensures the plug seats and seals correctly against compression pressure without cracking the ceramic element — over-torquing is a common installation error that causes early failure rather than the plug itself being defective. The dual-coil design separates the regulating coil from the heating coil, allowing the plug to self-limit current draw once operating temperature is reached, which extends element life and reduces the thermal load on the glow relay [NEED_CITE: dual-coil ceramic glow plug thermal regulation in medium-duty diesel engines]. These parameters together determine whether the plug will survive thousands of start cycles or fail prematurely under the thermal stress of daily cold starts.

The Cost of a Fitment Error You Only Discover at Startup

When a glow plug with the wrong connector terminal is installed, the symptom is not always immediate. The machine may start on the remaining three plugs while the fourth cylinder misfires during warm-up, causing uneven combustion that stresses injector seals and cylinder head gaskets over time [NEED_CITE: single-cylinder misfire effects on adjacent cylinder sealing in inline four-cylinder diesel engines]. The cost is not just the replacement plug — it is the second teardown, the lost operating days, and the potential relay damage from the electrical imbalance. For a demolition contractor working in sub-zero conditions, a cold-start failure means the entire crew stands idle while the problem is diagnosed and the correct part is sourced.

Why Sourcing This Part Through Our System Reduces Fitment Risk

Our production and qualified sourced supply operate under one account with identical QC and warranty terms, so whether your glow plug set comes from our own line or a verified partner, the warranty and inspection standards are the same. We stock across eight categories, meaning if your repair list also includes injector seals, cylinder head gaskets, or fuel filters, everything ships in one consignment. Minimum order starts from one piece — no MOQ blocking a single-set emergency replacement. Our Guangzhou warehouse holds stock on fast-moving items for rapid dispatch. Part identification works from the part number, machine model, engine serial, or a photograph of the old plug or nameplate. Cross-reference verification covers superseded and alternate numbers, and we supply samples for physical fitment confirmation before you commit to a bulk order.

Documentation & Verification

• Commercial invoice listing part number 8-98290-755-0 with cross-reference identification only
• Fitment sheet confirming engine variant, serial range, and connector type match
• Dimensional inspection record covering thread pitch, seating depth, and resistance values
• Warranty terms document specifying six-month coverage against manufacturing defects
• Packing photographs showing quantity count and protective packaging before dispatch
• HS code and customs documentation support for international shipment clearance

Fitment Check Before Installation

• Compare thread pitch and seating depth of the new plug against the removed unit before installation
• Verify connector terminal shape and pin count match the engine harness plug
• Torque to 18–22 N·m using a calibrated wrench to avoid ceramic element fracture
• Check resistance across all four plugs with a multimeter to confirm values within 0.95 ± 0.05 Ω
• Test glow relay operation after installation before attempting first cold start
• If terminal mismatch is found, halt installation and contact us with engine serial for re-verification

Inquiry Guidance for Accurate Fitment

When requesting a quote, provide the engine model and serial number — for example, 4HK1-TCS — so we can confirm variant-level compatibility rather than relying on a base model match alone. If the part number on your existing plug is worn or painted over, a photograph of the connector terminal and the engine nameplate allows us to cross-reference and verify the correct set. For fleet operators ordering multiple sets, specify whether your machines span different production years so we can check for variant differences across your fleet before consolidating the shipment.

Frequently Asked Questions

Q: How do I confirm these glow plugs fit my specific engine variant such as 4HK1-TCS versus 4HK1-TCN? A: Provide the full engine model designation and serial number from the nameplate. We cross-reference against variant-specific fitment data covering thread pitch, seating depth, and connector terminal type. The base model alone is not sufficient because connector configurations changed across production runs within the same engine family.

Q: My old part number is 8-97379-296-0 — is 8-98290-755-0 the correct replacement? A: Yes, 8-97379-296-0 is a superseded reference number that maps to 8-98290-755-0 for identification purposes. We verify this cross-reference against your specific engine serial and variant code to confirm the replacement is dimensionally and electrically compatible before dispatch.

Q: Why do different sellers list different reference numbers for the same glow plug? A: Formatting variations and superseded numbers create multiple valid references for the same component. Some sellers copy cross-reference tables without verifying supersession chains, carrying forward errors. We check each reference against current fitment data and engine serial ranges to confirm accuracy.

Q: I only have the machine model, no readable part number — can you still identify the right plug? A: Yes. Provide the machine model and, ideally, the engine serial number from the nameplate. A photograph of the existing plug connector or the engine data plate helps us narrow down the correct variant when the original part number is illegible or missing.

Q: Can I order a sample to verify fitment before placing a larger order? A: Yes, sample supply is available for physical trial fitment before you commit to bulk quantity. This is recommended when ordering for a fleet with mixed production years or when replacing plugs on an engine that has had previous rebuild work that may have altered the original specification.
