400903-00074D Fuel Injector – Verified Fitment for Doosan Bobcat

Verified Fitment Match — Each injector cross-referenced against Doosan D24 and Bobcat T-Series serial ranges before dispatch to prevent interface mismatch on site.

Technical Specifications

Application Suitability

Why the Same Part Number Arrives in Multiple Variants

Superseded numbers and engine-generation splits mean one identifier can cover several physically different injectors — only serial-level verification eliminates the guesswork.

I have seen part number 400903-00074D match the catalog perfectly on a Doosan D24, yet the injector body arrived with a connector that would not mate to the harness. The machine sat idle for days while a replacement shipped. In mixed-fleet environments where Bobcat T590 and T650 compact track loaders run side by side, the same base number appears across machines built in different years with internal revisions that are invisible on the nameplate [NEED_CITE: aftermarket fuel injector supersession tracking across engine generations].

A Fuel Injector for Doosan D24 D18 Bobcat T450 T550 T650 fitment requires more than a catalog lookup. Variant differences in solenoid connector shape, return port clocking, and nozzle spray pattern separate a direct-fit installation from an on-site failure that no amount of force will fix.

Serial Range and Model-Level Compatibility

Confirming the correct Fuel Injector for Doosan D24 D18 Bobcat T450 T550 T650 fitment starts with the machine serial number, not just the model badge. Doosan D24 engines produced before and after the supersession from 400903-00074C to -00074D can differ in actuator connector pin layout. Bobcat T-Series machines from T450 through T650 share the same engine family, yet the T590 S/N range splits into two injector configurations depending on the production year. Providing the full serial string allows precise cross-reference mapping and avoids the costly trial fitment that stalls a job.

Connector, Port, and Mating Surface Verification

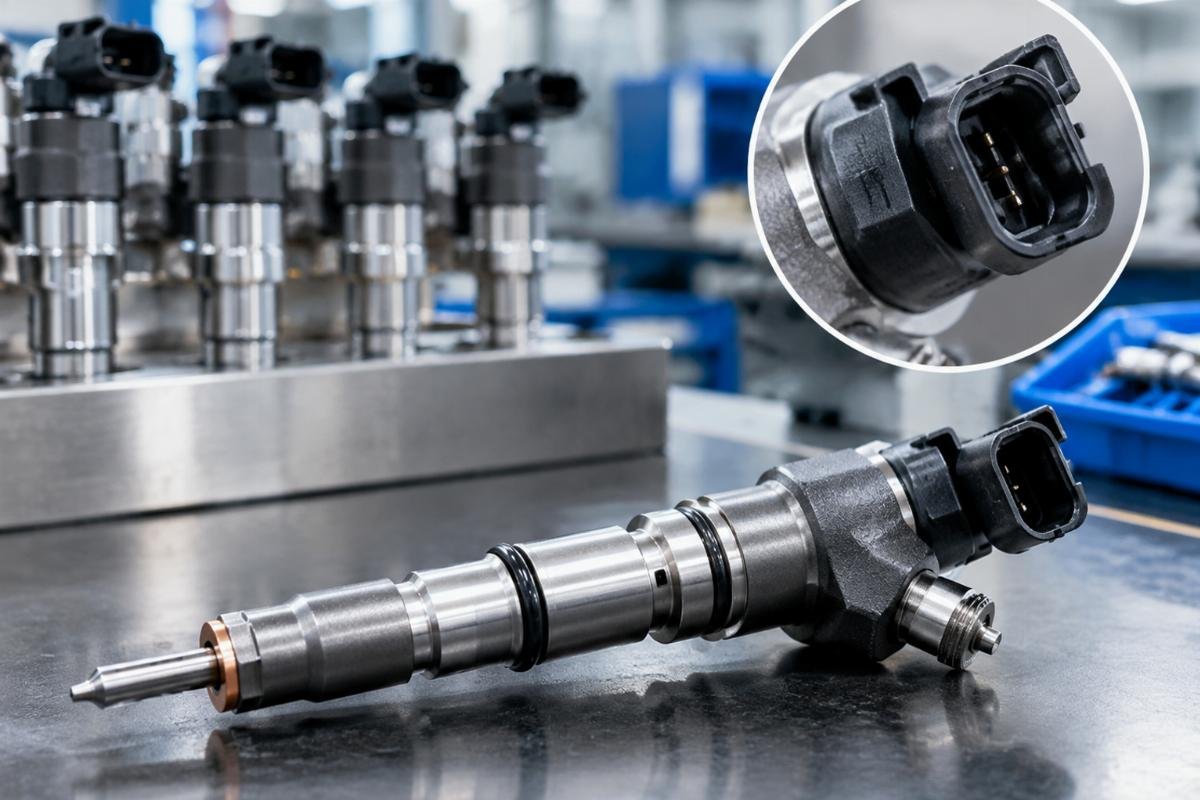

Before confirming an order, three physical interfaces must align. The 12V DC solenoid connector must match the engine wiring harness plug — shape, pin count, and locking tab position. The fuel return port orientation has to clock correctly relative to the fuel rail, otherwise the return line kinks or the injector body must be rotated, breaking the seat seal. The mating surface dimensional tolerance of ±0.01 mm ensures the injector seats against the cylinder head without shims or adapter plates [NEED_CITE: fuel injector seat sealing requirements in high-pressure common rail systems]. Any deviation on these three points means the part physically enters the bore but cannot function in the assembled engine.

What the Specification Sheet Tells You in Practice

The AISI 420 heat-treated stainless steel nozzle body resists the thermal cycling and fuel-side corrosion that erode softer alloys over repeated duty cycles. Operating pressure rated up to 180 MPa places this injector within the common rail envelope used by Doosan D24 and Bobcat T-Series diesel platforms, meaning the internal valve and nozzle geometry are dimensioned for peak injection pressures well above normal cruise load. The ISO 4406:2017 cleanliness standard of Class 16/14/11 governs the particle count inside the fuel path — contamination above this threshold accelerates nozzle erosion and shifts the spray pattern, causing uneven combustion. An operating temperature range from −25°C to +95°C covers cold-start conditions through sustained high-load operation without material degradation in the seal interfaces or actuator coil insulation.

What a Wrong Variant Costs Beyond the Part Price

An injector that almost fits is worse than one that clearly does not. A forced installation with a mismatched connector damages the harness terminals, turning a single-part replacement into an electrical system repair. An incorrect port clock position leads to fuel return restriction, raising rail pressure and triggering fault codes that send diagnostics down the wrong troubleshooting path [NEED_CITE: common rail fuel system fault code misdiagnosis from return line restriction]. The machine is down twice — once for the wrong part, once for the collateral damage — and the project schedule absorbs the full impact.

Sourcing With Fitment Confidence

Production lines for selected fuel system components are managed in-house, with remaining volumes sourced from ISO-certified manufacturing partners, all under one account and one warranty term. Eight product categories mean an injector order can consolidate with seal kits, filters, and gaskets into a single consignment, eliminating split freight. A one-piece minimum allows a single sample to arrive for physical fitment checking before a full engine set is committed. Part identification is available from the part number, machine model, a photograph of the old injector, or a nameplate image. Cross-reference verification covers superseded and alternate numbers such as 400903-00074C, 7275454, 28337917, and 7516848, ensuring the correct variant ships regardless of which number appears on the worn component.

Documentation & Verification

• Commercial invoice listing every injector by part number and cross-reference identifier for customs clarity
• Compatibility sheet mapping supplied part number to specific Doosan and Bobcat serial ranges (reference only)
• Dimensional inspection record confirming ±0.01 mm tolerance on each injector mating surface
• Six-month warranty terms covering manufacturing defects with defined claim procedure
• Packing photographs showing protective caps on nozzle tips and connector ports before crating
• HS code and customs documentation support for cross-border fuel system component shipments

Fitment Check Before Installation

• Compare the old injector solenoid connector shape and pin count against the replacement before removing protective caps
• Verify return port clock orientation against the fuel rail layout to prevent line kinking
• Seat the injector by hand into the cylinder head bore — resistance indicates a dimensional mismatch, not a bedding-in requirement
• Check nozzle tip protrusion against the service manual specification for the specific engine serial
• If the connector does not mate without force, halt installation and request cross-reference re-verification

Request a Fitment Confirmation

Provide the full machine model, serial number, and a photograph of the existing injector or nameplate. The technical team will cross-reference the identifier against all superseded and alternate numbers, confirm connector and port compatibility, and return a verified fitment statement before any order is placed.

Frequently Asked Questions

Q: How do I confirm this Fuel Injector fits my specific Doosan or Bobcat machine? A: Share the complete machine model and serial number — for example, "Bobcat T650 S/N 1234567." The serial number determines which injector variant was fitted at the factory, because supersessions and running changes mean the model badge alone does not narrow the field to a single part configuration. A cross-reference check covers all alternate numbers and confirms connector compatibility.

Q: My old part number is 400903-00074C — is the -00074D version compatible? A: In most cases, yes. The -00074D supersedes the -00074C as a revised production version. However, the supersession does not apply uniformly across every engine serial range. Providing your specific machine serial number allows confirmation that the dimensional and electrical interfaces carry forward without requiring an adapter or harness modification.

Q: Why are there multiple part numbers listed for what seems to be the same injector? A: Numbers such as 7275454, 28337917, and 7516848 are alternate identifiers assigned by different cataloging systems or equipment manufacturers for the same base injector. Listing them as cross-references ensures that buyers arriving from any of these identifiers can be matched to the correct component, provided the machine serial confirms the variant is right for their specific build.

Q: I only have the machine model, not the part number — can you still identify the right part? A: Yes. A photograph of the machine nameplate, the engine data plate, or the old injector itself — even with a worn or painted-over label — gives enough information for identification. The technical team cross-references the machine model and visible serial fragments against known fitment ranges to isolate the correct injector variant.

Q: Can I order a single sample to verify fitment before placing a larger order? A: The minimum order is one piece. A single sample allows you to physically check the connector match, port orientation, and bore fitment on your machine before committing to a full set. This step is particularly valuable for mixed fleets where multiple serial ranges are in operation across the same model designation.
