RHF4 Turbocharger 513-6823 for CAT C2.2 & 3024C – Cross-Reference

Cross-Reference Verified — Each 513-6823 turbocharger is checked against machine serial prefix and engine build variant before dispatch to confirm physical fitment.

Technical Specifications

Application Suitability

Why the Same RHF4 Turbocharger Carries Nine Different Reference Numbers

The RHF4 Turbocharger for CAT 247B 257B / 513-6823 cross reference fitment spans multiple production generations, each revision introducing a new number without retiring the old one from service manuals.

Buyers holding an older service manual often find a part number that no longer appears in current catalogs. The supersession chain for this turbo runs through at least nine distinct references, from early numbers like 239-0230 and 317-0981 through to the current 513-6823 identifier. Cross-reference tables circulated among aftermarket sellers frequently carry errors forward because they are copied without verifying the underlying turbo model designation. I have seen orders placed against a discontinued number arrive as a visually similar but mechanically incompatible unit — same RHF4 family, wrong compressor wheel trim or exhaust flange clocking [NEED_CITE: turbocharger supersession chain verification for compact diesel engines]. The only reliable method is to verify the full turbo model string RHF4-46001P8.5NHBRL323CAZ against the original nameplate, or confirm fitment by machine serial prefix when the nameplate is no longer legible.

Serial Range Coverage Across the Skid Steer Loader Line

The 513-6823 turbocharger fits CAT C2.2 and 3024C engines installed across eight skid steer loader models from the 216B through the 257B. However, machine model alone is not sufficient for positive identification. Each model was produced across serial ranges that may include engine build variations, and the turbocharger interface — particularly the oil inlet flange orientation and exhaust outlet angle — can differ between early and late production units. Requesting a cross-reference confirmation with your machine serial prefix eliminates the guesswork before the unit ships.

Interface Verification Beyond the Base Part Number

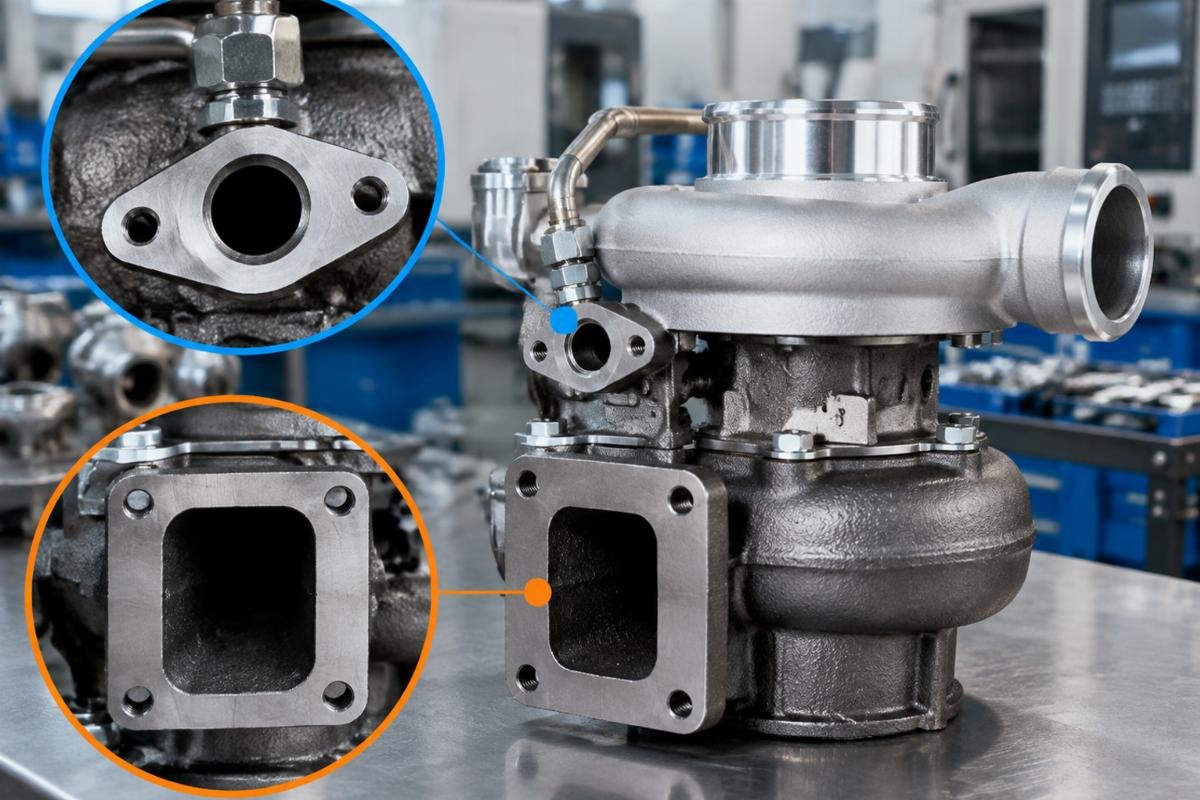

Physical fitment of the RHF4 Turbocharger for CAT 247B 257B / 513-6823 cross reference fitment depends on several interface points that are not captured by the part number alone. The oil inlet flange must align with the supply line routing on your specific engine build; a 90-degree clocking difference renders the unit unmountable without adapter modifications that compromise reliability. The exhaust outlet port angle must match the existing downpipe or exhaust manifold geometry. The compressor housing bolt pattern must correspond to the intake manifold stud layout. I once assisted a customer whose older manual specified a turbo that matched the base number but had the oil inlet rotated — the unit physically bolted to the manifold but the oil feed line could not reach without kinking [NEED_CITE: turbocharger oil supply line routing constraints in compact engine bays]. Before bulk commitment, we supply a sample unit so the buyer can verify these interfaces on the actual machine.

Reading the Turbo Model Designation

The full model string RHF4-46001P8.5NHBRL323CAZ encodes specific aerodynamic and mechanical configuration details. The RHF4 platform indicates the frame size class suitable for the displacement and boost requirements of the C2.2 and 3024C engines. The internal trim and wheel specifications determine the compressor map — the relationship between airflow delivery and boost pressure across the engine speed range. Selecting a turbo from the same RHF4 family but with a different internal configuration can produce adequate boost at peak RPM but leave the engine flat at mid-range, where skid steer loaders spend most of their working time during digging and tramming cycles. The exact designation string ensures the replacement delivers the same airflow characteristics as the unit originally calibrated to the engine control parameters.

The Hidden Cost of Fitment Guesswork

Ordering a turbocharger based on a single reference number without verifying the variant carries consequences beyond a simple return. A unit with the wrong flange clocking may be forced into place with improvised fittings, introducing oil restriction or exhaust leakage that shortens the turbo's service life and risks engine damage from inadequate lubrication. A compressor wheel with incorrect trim may produce boost pressure that falls outside the engine calibration envelope, causing elevated exhaust temperatures and accelerated component wear [NEED_CITE: turbocharger mismatch effects on diesel engine exhaust gas temperature]. The machine goes back to work, but the underlying mismatch generates a secondary failure weeks later — by which time the connection to the incorrect turbo is no longer obvious.

Sourcing With Fitment Certainty

Our Guangzhou warehouse stocks this RHF4 turbocharger for verified dispatch to confirmed machine serial ranges. Both our own production lines and qualified sourced supply carry identical quality control procedures and the same warranty terms, so buyers receive consistent coverage regardless of production origin. The full cross-reference chain from 239-0230 through 513-6823 is verified in-house, not copied from third-party tables, so superseded numbers are matched to the correct physical unit. A single piece ships on the same account and warranty as a fleet-quantity order. Technical support is available to confirm compatibility from a machine model, a photograph of the existing nameplate, or an image of the oil and exhaust interfaces on the removed unit.

Documentation & Verification

• Commercial invoice lists turbo model string and machine serial for traceability
• Cross-reference sheet maps all nine superseded numbers with reference only notation
• Dimensional check on flange orientation and bolt pattern recorded before dispatch
• Warranty terms state coverage period and claim procedure specific to turbochargers
• Packing photographs show anti-vibration foam placement inside reinforced carton
• HS code and export documentation provided for customs clearance at destination

Fitment Check Before Installation

• Compare oil inlet flange angle on new turbo against removed unit before mounting
• Verify exhaust outlet port orientation matches existing downpipe geometry
• Check compressor housing bolt pattern aligns with intake manifold studs
• Confirm wastegate actuator bracket position matches original assembly configuration
• Inspect oil drain gasket surface for flatness against engine block mating face
• Rotate compressor wheel by hand to confirm free movement before connecting lines

Requesting a Fitment Confirmation

Provide your machine model and serial prefix, or a photograph of the existing turbocharger nameplate showing the model designation. If the nameplate is worn or painted over, send images of the oil inlet flange and exhaust outlet port on the removed unit. We will verify cross-reference coverage against the supersession chain and confirm whether the RHF4-46001P8.5NHBRL323CAZ matches your specific engine build before any commitment to order.

Frequently Asked Questions

Q: How do I confirm this turbo fits my specific machine serial range? A: Share your machine model and serial prefix. We cross-check the engine build record to verify whether the CAT C2.2 or 3024C variant in your machine matches the RHF4-46001P8.5NHBRL323CAZ configuration, including flange orientation and port angles. This eliminates fitment uncertainty before the unit ships.

Q: Do older superseded numbers like 317-0981 or 239-0230 still apply to my machine? A: Yes, these earlier references are part of the verified supersession chain leading to 513-6823. We confirm whether your machine's original build date falls within the serial range covered by the earlier number, then match it to the current production turbo with identical interface specifications.

Q: Why does the same base turbo appear under so many reference numbers? A: Each number reflects a production revision, engineering change notice, or remanufacturing program identifier assigned over successive machine generations. The underlying turbo platform remains RHF4, but internal trim, gasket specifications, or bracket configurations may differ between revisions, making accurate cross-reference verification essential.

Q: What if only my machine model is known and the part number is unreadable? A: Send a photograph of the removed turbocharger showing the oil and exhaust interfaces. We compare flange clocking, bolt pattern, and housing geometry against our fitment database for your machine model to identify the correct variant without relying on a legible nameplate.

Q: Can a sample unit be supplied before committing to a bulk order? A: Yes. A single sample ships for physical trial fitment on your machine. Once flange alignment, port orientation, and hose routing are confirmed on the actual unit, the remaining quantity can be released with confidence that every piece in the batch will install without modification.
