Fuel Injector 1J808-53050 – Verified Fitment for Kubota D1803 V2403 R430

Verified Cross-References — Every 1J808-53050 and 0445110775 mapping confirmed against engine serial ranges before dispatch.

Technical Specifications

Application Suitability

Superseded Numbers and Variant Traps with Kubota Injectors

Engine serial verification eliminates the guesswork across every D1803 and V2403 build variant.

Buyers often encounter situations where the base part number matches the catalog, yet the physical injector fails to seat or spray correctly once installed. Cross-reference tables passed between traders frequently carry forward errors, and a single Kubota loader generation may ship with two different fuel system configurations depending on the production year. I have processed claims where the nozzle angle was fractionally off, causing atomization issues that mimicked a pump failure [NEED_CITE: common rail injection timing variance symptoms in Tier 4 diesel engines]. The Fuel Injector for Kubota D1803 V2403 requires variant-level matching, not just number matching, to avoid these silent mismatches.

Mapping Engine Serial Ranges to the Correct Injector Variant

The transition from earlier Kubota builds to the current Tier 4 emission standard introduced internal changes to the injector body profile and return line port position. When sourcing a Fuel Injector for Kubota D1803 V2403, the suffix on the engine plate — such as -CR-TIE4 or -CR-TIE4BG-KEA1 — determines which physical body variant is required. We pull the specific engine serial range against our fitment matrix before confirming any order, ensuring the injector you receive matches your exact build rather than a generalized catalog entry.

Port Position and Return Line Interface Checks

Even within the same base number family, the fuel return port orientation and sealing washer thickness can differ between a D1803-CR-TIE4B-KEA-1 and a standard V2403-CR-TIE4. Before bulk commitment, we recommend comparing the port clocking and connector type on your existing unit against our reference photograph [NEED_CITE: common rail injector return line fitting variations across Kubota engine families]. This step prevents the scenario where the injector physically mounts but the return line cannot connect without bending or stressing the hose.

Pop Pressure and Spray Pattern Calibration

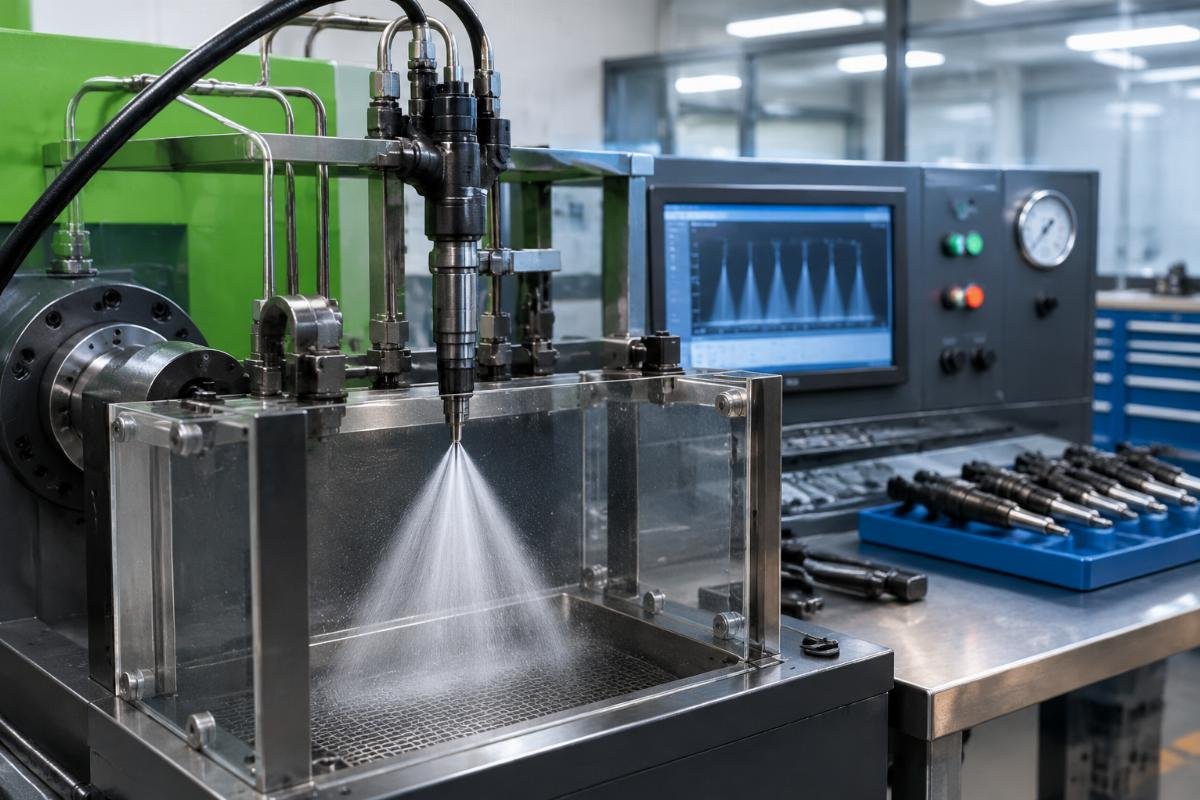

Each unit is tested on Bosch EPS 815 benches to confirm pop pressure holds at 250 bar ±5 bar and the spray pattern meets the nozzle orifice tolerance specification. Hardened stainless steel tips resist carbon buildup that typically degrades atomization over service hours. The nitrided steel plunger maintains surface hardness through the high-cycle environment of a loader that sees repeated load-and-carry duty. These parameters ensure the Fuel Injector for Kubota D1803 V2403 delivers consistent fuel delivery from first start through the end of its service window.

The Cost of Shipping a Variant That Does Not Fit

When a loader sits idle because the injector arrived with the wrong return line orientation, the machine downtime compounds with return freight charges and re-order delays. In mining and heavy construction environments, that idle time affects downstream equipment scheduling and contract milestones [NEED_CITE: equipment downtime cost modeling in surface mining operations]. A forced-fit attempt damages the injector seat and cylinder head sealing surface, converting a simple swap into a head removal and machine shop visit.

Sourcing Advantages Specific to Fitment Verification

Our production lines and qualified sourced supply operate under one account with identical warranty terms, so every Fuel Injector for Kubota D1803 V2403 carries the same quality commitment regardless of origin. We identify parts from machine model, nameplate photograph, or serial number when the original stamping is worn or painted over. Cross-reference verification covers all superseded and alternate numbers listed for this application. A sample set is available for functional fitment validation before you commit to a fleet-wide order. Our technical team confirms engine variant compatibility and advises on grade selection when previous rebuilds have altered clearances.

Documentation & Verification

• Commercial invoice and packing list itemized by engine variant suffix
• Part compatibility sheet mapping your serial number to the confirmed injector body type (reference only)
• Pop pressure and spray pattern test records included with each shipment
• Six-month warranty terms covering manufacturing defects
• Packing photographs showing nozzle tip protection and port caps installed
• HS code classification support for customs clearance in destination markets

Fitment Check Before Installation

• Compare return port clocking on the new unit against the removed injector before removing protective caps
• Verify the copper sealing washer thickness matches the cylinder head counterbore depth specification
• Hand-thread the fuel line fittings to confirm thread engagement before applying torque
• Check electrical connector pin count and latch orientation against the harness plug
• Run a leak-down test at cranking speed before starting the engine under load
• If any dimension deviates, halt installation and contact us with photographs for immediate cross-check

Confirming Fitment Before You Order

Provide your full machine serial number or engine plate photograph, including any suffix characters. If the original part number is worn away, a clear image of the existing injector body and return line connection is sufficient for identification. We will return a confirmed fitment statement with the verified cross-reference path before any order is processed.

Frequently Asked Questions

Q: How do I confirm which injector variant fits my specific D1803 or V2403 engine build? A: Share the complete engine serial number and the suffix shown on the engine plate, such as D1803-CR-TIE4B-KEA-1. We cross-check this against our fitment matrix to confirm the exact body profile, port orientation, and return line configuration required for your build. This eliminates variant mismatch before shipment.

Q: My old part number is 1J808-53051 — is it superseded by 1J808-53050 or 1J808-53052? A: Part number supersession depends on the engine generation and emission standard your machine was built to. We verify the supersession path using your machine serial number, confirming whether 1J808-53050, 1J808-53052, or another variant in the cross-reference family is the correct replacement for your specific application.

Q: Why do multiple part numbers like 0445110775 and 0445110711 appear for the same injector? A: Different numbering systems reflect the original equipment supplier, the machine manufacturer, and the fuel system component maker. We map all these cross-reference numbers to confirm interchangeability for your engine variant, ensuring the unit you receive matches regardless of which number appears on your old part.

Q: I only have the machine model R430CA with no readable part number — can you still identify the right injector? A: Yes. Provide the machine serial number or a photograph of the engine nameplate. We use the machine build record to determine the engine variant installed at the factory, then match the correct injector body and calibration from our cross-reference database without needing the original part stamping.

Q: Can I order a sample set to test fitment before buying for the whole fleet? A: Sample sets are available for fitment and functional validation before you commit to bulk quantities. Install the sample on one machine, confirm port alignment, spray performance, and connector fitment, then proceed with confidence on the remaining fleet order knowing the variant is correct.
