12V 55A Alternator 3A611-74013 for Kubota D722 – Cross-Reference

Cross-Reference Verified — alternator fitment checked against Kubota serial variants and superseded OEM listings before dispatch.

Technical Specifications

Application Suitability

Why Superseded Part Numbers Keep Taking Machines Out of Service

A valid cross-reference chain is the only defense against ordering the wrong variant.

Buyers frequently assume that matching the base number is sufficient, only to find the replacement alternator has a different connector layout or terminal post position. Across Kubota L-series and M-series tractors, the same base part number appears with variant suffixes tied to the transmission type or model year revision. Ordering without verifying the serial prefix means the machine sits idle while the correct unit ships [NEED_CITE: alternator variant identification across tractor model generations]. This 12V 55A Alternator for Kubota L3240 cross reference 3A611-74013 listing covers verified interchange numbers including 1G728-64013 and TA043-74012, each confirmed against dimensional and electrical interface records.

Fitment Coverage Across Kubota, Massey Ferguson, and AGCO Platforms

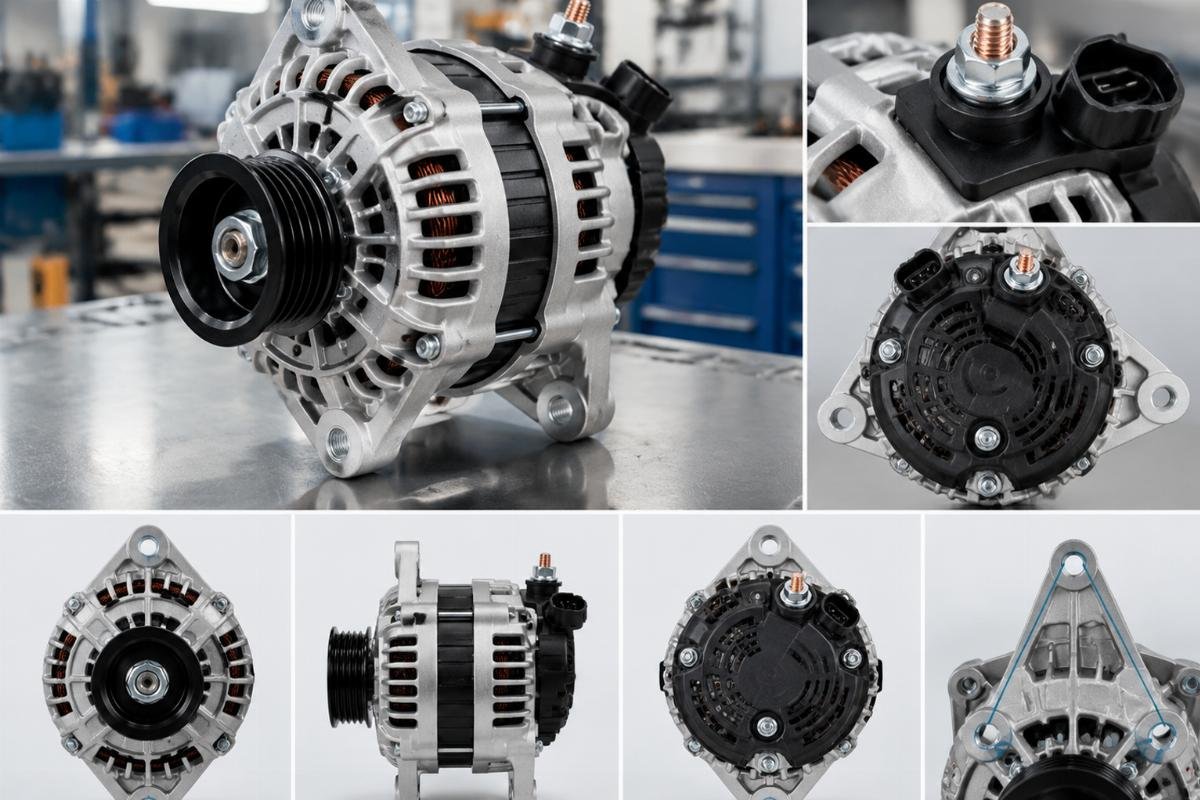

This alternator is compatible with over thirty Kubota L-series and M-series tractor configurations, Kubota R-series wheel loaders, and multiple Massey Ferguson and Challenger models sharing the same electrical architecture. When a nameplate is worn or painted over, identification from the machine model alone is often sufficient to confirm the correct variant. The cross-reference database includes superseded and alternate numbers, ensuring that discontinued OEM listings can be replaced with dimensionally and electrically interchangeable units. A 12V 55A alternator replacement for Kubota D722 and V2203 engines must match terminal post orientation to the engine-side wiring harness; this is verified before shipment.

Interface Verification Before the Alternator Leaves the Warehouse

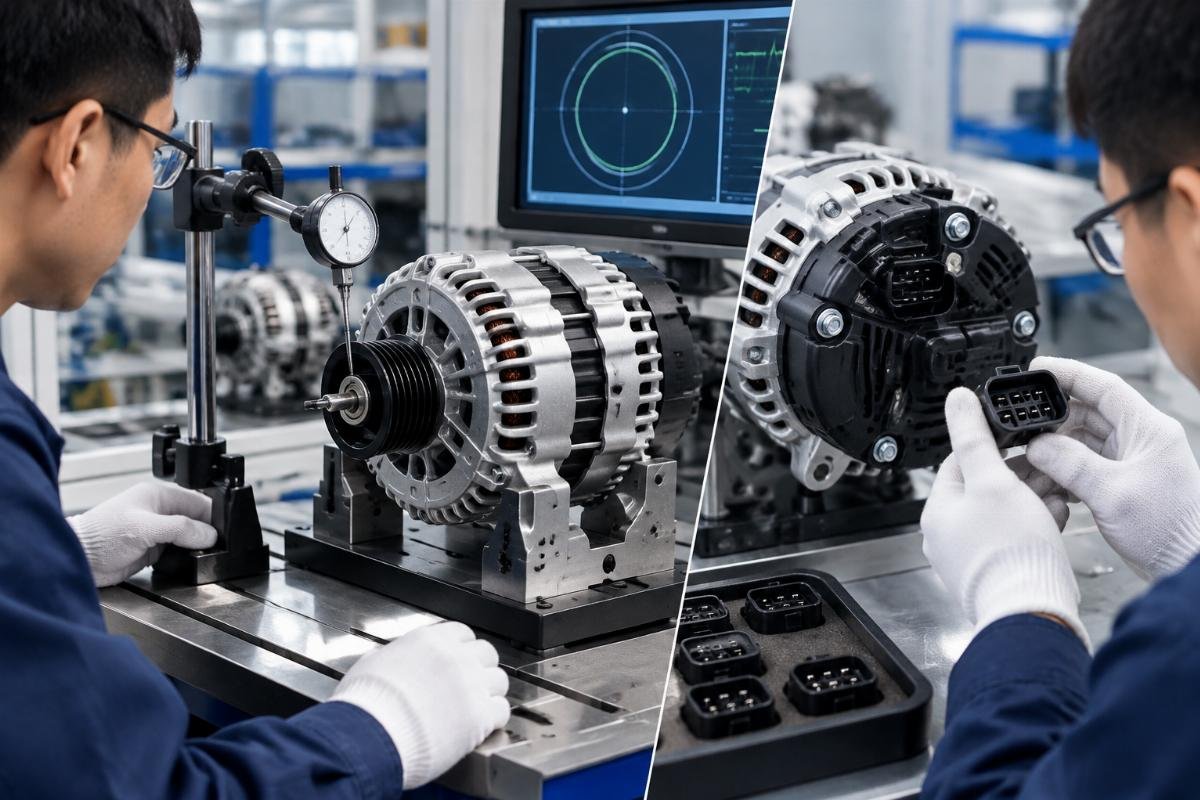

Mounting ear bolt pattern, pulley groove profile, connector pin count, and terminal post clocking are the four interfaces that determine whether the alternator bolts on and connects without modification [NEED_CITE: mobile equipment alternator mounting and electrical interface standards]. Shaft runout is held to ≤0.05mm per ISO 1940, which prevents belt tracking issues and premature bearing wear at the drive end. For machines operating in dusty agricultural or quarry environments, zinc-nickel electroplating on the housing provides corrosion resistance beyond standard zinc finishes. These dimensional checks are performed against the specific machine model and serial prefix supplied by the buyer.

What the Electrical Ratings Mean in the Field

Class H insulation rated to 180°C allows the alternator to sustain output under sustained high-ambient conditions typical of enclosed engine bays in tropical climates. The 80A rectifier diode peak surge capacity handles transient loads from lighting arrays, hydraulic solenoid valves, and cab electronics switching simultaneously at startup. Voltage regulation held within ±0.25V at nominal 12V protects sensitive electronic control modules from overvoltage conditions that degrade battery life and trigger fault codes. The 55A continuous output meets the combined draw of standard tractor electrical systems including work lights and instrument clusters.

The Cost of Skipping Variant Confirmation

An alternator that bolts on but has the wrong terminal clocking forces the technician to reroute the harness, creating stress points that fail under vibration. A unit with mismatched pulley groove dimensions causes belt slip and undercharging, which the operator may not notice until the battery is too depleted to crank. In fleet environments, installing an incorrect variant across multiple machines multiplies the rework rather than containing it to a single unit [NEED_CITE: electrical system fault propagation in mixed-fleet tractor operations]. These failures do not appear immediately; they surface days or weeks after installation when the machine is back under load.

Why Buyers Source This Part Through XUNPO

Own production lines and qualified sourced supply operate under a single warranty, so buyers receive consistent quality terms regardless of which facility produces the batch. Eight product categories ship under one account, meaning an alternator order can consolidate with seal kits, filters, and undercarriage components in a single consignment. Minimum order is one piece, removing the barrier for single-unit emergency replacements. The technical team verifies machine model, serial prefix, and variant suffix against the cross-reference database before confirming the shipment. Sample units are available for physical fitment trials before buyers commit to fleet-level quantities.

Documentation & Verification

• Commercial invoice listing 3A611-74013 with HS code for customs clearance
• Cross-reference sheet mapping 1G728-64013, TA043-74012, and superseded numbers (reference only)
• Dimensional inspection record covering shaft runout, mounting ear spacing, and pulley profile
• Warranty terms specifying coverage period and manufacturing defect scope
• Packing photographs showing protective foam insert and retail box condition before crating

Fitment Check Before Installation

• Compare mounting ear bolt spacing on the new alternator against the removed unit before unboxing connectors
• Verify terminal post clocking matches the engine-side harness routing to avoid forced bending
• Check pulley groove profile against the existing belt; replace the belt if glazing is present
• Measure voltage at the battery terminals after first start to confirm regulation within ±0.25V
• If connector pin count does not match, photograph both sides and submit for cross-reference re-verification

Send Your Machine Details for Fitment Confirmation

Provide the machine model, serial number prefix, and a photograph of the existing alternator nameplate or connector layout. If the nameplate is unreadable, a photo of the mounting ear pattern and terminal post position is sufficient for identification. The technical team will return a confirmed cross-reference and variant match within one response cycle, along with dimensional data for your workshop to verify before installation.

Frequently Asked Questions

Q: How do I confirm this alternator fits my specific Kubota configuration variant? A: Submit the full machine model with its suffix (e.g., L3240HSTC vs. L3240DT) and the serial number prefix. The cross-reference database distinguishes between HST, GST, and DT variants that share the same base number but differ in connector pin layout or terminal post clocking. A dimensional comparison sheet is provided before shipment so your workshop can verify mounting pattern and interface match.

Q: My old alternator carries a number not listed here — can 3A611-74013 still replace it? A: Many Kubota alternator part numbers have been superseded across model years. Numbers such as 1G728-64013 and TA043-74012 are confirmed interchange references for this unit. Send a photograph of the old nameplate or the removed unit's connector and mounting ear configuration; the technical team will map the discontinued number to the current verified equivalent.

Q: Why does the same base part number appear with different suffixes across model years? A: Kubota revises electrical system specifications when introducing transmission variants, updated harness routing, or revised engine builds. The suffix indicates the specific connector type, terminal post orientation, or pulley configuration matched to that production run. Ordering by base number alone without the suffix risks receiving a unit with incompatible interfaces.

Q: I only have the machine model and no readable nameplate — can you still identify the correct alternator? A: Machine model is often sufficient when combined with the engine type (D722 or V2203) and transmission configuration. Photographs of the existing alternator's mounting ears, connector, and terminal posts allow dimensional cross-referencing against the database. If multiple variants remain possible, a sample unit can be shipped for physical fitment confirmation before the bulk order.

Q: Can I order a sample to verify fitment before placing a fleet-level order? A: Sample units ship under the same quality terms as production orders. Buyers managing multiple Kubota L-series or M-series tractors can install the sample on one machine, confirm dimensional and electrical interface match, and then release the remaining quantity. This eliminates the risk of fleet-wide fitment errors from a single incorrect variant selection.
