Water Pump SBA145017721 | Direct Fit for Shibaura ISM N844

Verified Cross-Reference — SBA145017721 confirmed against Shibaura ISM N844 engine variants and New Holland TC series mounting patterns before every shipment.

Technical Specifications

Application Suitability

When the Part Number Matches but the Water Pump Does Not Fit

Engine serial range determines which variant of SBA145017721 actually bolts onto your block.

Working with compact tractor drivetrains in Shandong, I learned that a matching part number is only the starting point. The Shibaura ISM N844 family spans six documented variants — N843-C, N843-H, N844L-C, N844LT-C, N844T — and each carries subtle differences in coolant port orientation and mounting flange geometry. A water pump listed as compatible with a New Holland TC35 may physically arrive with an inlet neck rotated just far enough to interfere with the adjacent bracket on a specific engine serial [NEED_CITE: Shibaura ISM N844 engine variant identification and port orientation differences]. Buyers who order from a cross-reference table without verifying the engine build often discover the mismatch only after the old pump is already off the machine.

Mapping Superseded Numbers to Your Specific Engine Build

The reference chain for this water pump includes SBA145017790, SBA145017780, and SBA145017730 alongside SBA145017721. These numbers were assigned across different production periods and sometimes map to the same physical pump, sometimes to a dimensionally distinct variant. The correct Water Pump for Shibaura ISM N844 / SBA145017721 cross reference fitment depends on whether your engine carries an early-build or late-build serial. Our technical team traces each superseded reference back to the applicable engine serial range so that the pump you receive matches the block currently in your machine.

Interface Verification Before the Wrench Turns

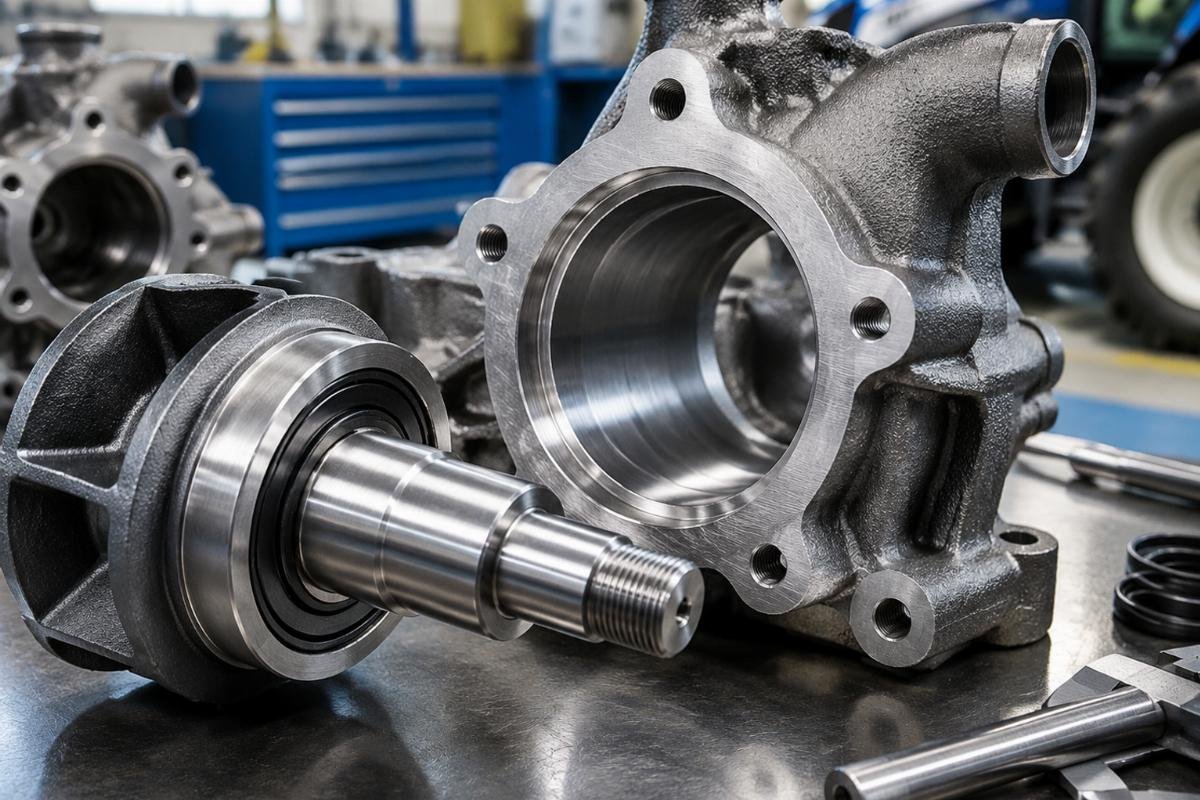

The fitment-critical interfaces on this water pump include the housing bore, the shaft engagement surface, and the coolant inlet/outlet port positions. Housing bore is held to ISO h7 tolerance (±0.018 mm), which means the pump seats into the block without shimming or reaming when the mating surface is clean and undamaged. Shaft runout is verified at ≤0.05 mm — any deviation beyond this threshold would cause premature seal wear and eventual coolant leakage past the carbon/ceramic mechanical seal faces [NEED_CITE: shaft runout tolerance standards for engine-driven water pumps]. Port orientation must be compared against the old unit before installation, because even within the same machine model year, routing changes occurred when the manufacturer updated the thermostat housing.

Reading the Specifications That Matter in the Field

The high-silicon aluminum alloy (A380) impeller resists cavitation erosion that commonly pits standard aluminum impellers when coolant chemistry drifts out of specification. Cavitation damage accumulates silently — by the time coolant temperature climbs on the gauge, the impeller vanes have already lost material and flow volume drops below the threshold needed for sustained PTO loader cycles. The Viton O-ring, rated to 150°C, maintains sealing integrity well above the normal operating ceiling of the cooling system, providing a margin that standard nitrile seals cannot match under extended high-load conditions. Carbon/ceramic seal faces offer consistent wear characteristics across the –20°C to +50°C operating window, and the 1.8–2.2 bar operating pressure range aligns with the pressure cap rating on the New Holland TC series expansion tanks.

The Cost of Installing the Wrong Variant

A water pump that bolts on but has the wrong port angle forces the technician to either bend the hose into a tight radius — which causes it to collapse under suction — or to fabricate an adapter that introduces a leak point. Either workaround shifts attention away from the actual repair and creates a callback within weeks. When the machine is a New Holland TC45DA used on a contracted site, that callback means mobilizing a service truck again, draining coolant a second time, and explaining to the equipment manager why the job was not done right the first time [NEED_CITE: cost impact of incorrect aftermarket part fitment on equipment repair turnaround]. A sample unit ordered before a bulk commitment eliminates this risk entirely.

Why Buyers Source This Water Pump Through Our Counter

Our production and qualified sourcing lines carry identical QC terms, so whether the pump ships from our own facility or a vetted partner, the warranty and inspection standard remain the same. Eight product categories sit under one account, meaning the thermostat, hose clamps, coolant hoses, and belt tensioner can ship in the same consignment as the water pump. Orders start at one piece — no minimum blocking a single emergency replacement. Our team identifies the correct variant from a part number, machine model, or a photograph of the nameplate, and cross-reference verification covers superseded and alternate references. A sample unit is available for physical fitment confirmation before any fleet-level quantity ships.

Documentation & Verification

• Commercial invoice and packing list referencing SBA145017721 and engine variant
• Part compatibility and cross-reference sheet noting SBA145017790, SBA145017780, SBA145017730 as reference only
• Quality inspection record showing housing bore and shaft runout measurements
• Six-month warranty terms covering material and workmanship defects
• Packing photographs documenting unit condition before crate closure
• HS code and customs documentation support for international shipment

Fitment Check Before Installation

• Compare housing bore diameter and bolt hole spacing against the removed pump before fitting the new SBA145017721.
• Verify inlet and outlet port orientation matches the coolant hose routing on your specific TC series or Ford tractor.
• Check shaft engagement length and runout reading against the ≤0.05 mm specification using a dial indicator.
• Inspect the mating surface on the engine block for pitting or gasket residue that could compromise the ISO h7 bore seal.
• If port angle or bolt pattern does not match, halt installation and contact our technical team with engine serial details.

Send Us the Details That Confirm Fitment

Provide your machine model, engine serial number, or a clear photograph of the nameplate and the old water pump. We will verify which reference number in the SBA145017721 family applies to your specific build and return a confirmed fitment statement within hours. For fleet orders, request a sample unit for physical trial fitment before committing to full quantity.

Frequently Asked Questions

Q: How do I confirm this water pump fits my specific tractor when I only have the machine model? A: Machine model narrows the range, but the engine serial number determines the exact variant. Send us the model — for example, New Holland TC35DA — along with any readable digits from the engine nameplate or a photograph. We cross-reference the serial against the ISM N844 variant list and confirm whether SBA145017721 or one of its superseded references applies to your block.

Q: Are SBA145017790, SBA145017780, and SBA145017730 interchangeable with SBA145017721? A: Not universally. These references were assigned across different production periods of the Shibaura ISM engine family and sometimes map to dimensionally distinct pumps. We trace each number against your engine serial to confirm interchangeability. Ordering from a generic cross-reference list without serial verification risks receiving a pump with a mismatched port orientation.

Q: What if my nameplate is worn or unreadable — can you identify the correct part from a photo? A: Yes. Send clear images of the old water pump from multiple angles, the engine block mating surface, and any remaining cast numbers on the pump housing. Our team compares these against known variant features — port angle, flange shape, bolt pattern — to narrow the identification before requesting a sample fitment check.

Q: Can I order one sample to verify fitment before placing a larger order? A: Yes. Single-piece orders are accepted with the same quality inspection and warranty terms as bulk shipments. We recommend ordering one unit, performing a physical fitment check on the machine, and confirming hose routing and bolt alignment before releasing the full quantity.
