TD03 Turbocharger for Kubota V2003T V2403-M-T – Verified Fitment

Verified Variant Matching — every TD03-07G and TD03-07T sub-model cross-checked against your engine serial before dispatch.

Technical Specifications

Application Suitability

Why the Same TD03 Part Number Ships in Multiple Variants

The part number alone never tells the full story — the engine serial and emission tier determine which variant actually fits.

A TD03 Turbocharger for Kubota V2003T / V2403-M-T cross reference fitment search will return a wall of numbers, and most cross-reference tables simply list them all as interchangeable. They are not. I have watched a machine sit dead on a demolition site for two weeks because a replacement turbo bolted on but the oil inlet was rotated ninety degrees from where the feed line could reach. The part number matched. The sub-model did not. Three different TD03-07G and TD03-07T variants can hide behind a single OEM reference, and the difference between them comes down to flange clocking, wastegate bracket position, and boost reference port routing [NEED_CITE: turbocharger variant differentiation across engine emission tiers].

Mapping Sub-Models to Engine Serials

The TD03-07G-6.0, TD03-07G-3.3, and TD03-07T-4.0 each serve a distinct boost curve and physical interface. The V2003T typically takes one of the -07G variants, while the V2403-M-T family leans toward the -07T-4.0, but production splits exist within the same engine family depending on build date and market emission requirements. A TD03 Turbocharger for Kubota V2003T / V2403-M-T cross reference fitment request must include the full engine plate — not just "V2403" — to narrow down the correct sub-model.

Physical Interface Verification Before Commitment

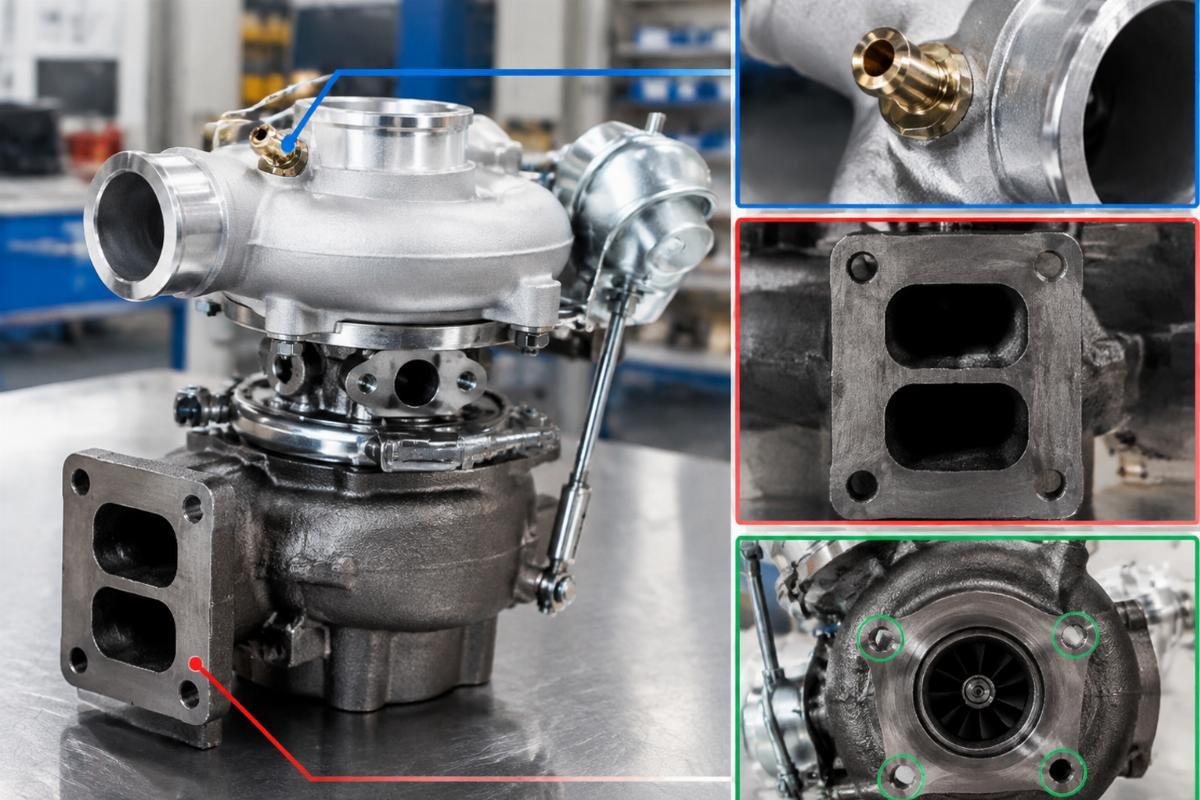

Oil port angle, exhaust flange bolt spacing, and compressor housing outlet orientation are the three measurements that separate a direct fit from a forced adaptation. When the nameplate is gone or painted over, I ask for photographs of the removed turbo from three angles: the oil inlet, the exhaust flange face, and the compressor outlet clocking relative to the actuator bracket. This takes minutes and prevents the kind of mismatch that sends a unit back across borders. Sealing surface flatness held to ±0.01 mm means nothing if the bolt holes do not align with your manifold [NEED_CITE: turbocharger flange alignment tolerance standards for off-highway diesel engines].

Decoding the Cross-Reference Maze

The twelve OEM reference numbers associated with this turbo family — from 49131-02090 through 1E499-17012 — span multiple supersessions and cross-brand catalog carry-overs. Some numbers have been discontinued and replaced; others appear in third-party tables copied from one catalog to the next without verification. Our cross-reference verification traces each number against engine serial ranges and production batches rather than trusting aggregated lists.

Sealing, Bearings, and Thermal Limits

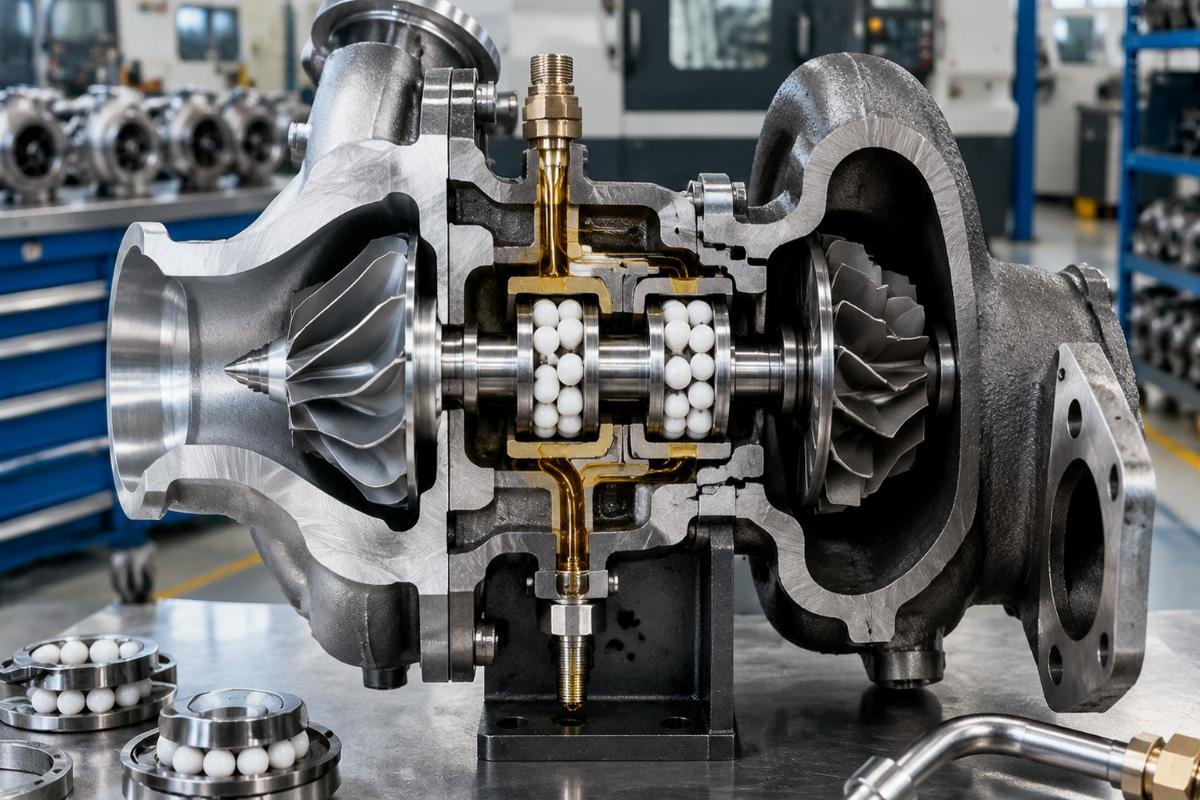

The Ni-Resist D2 ductile iron turbine housing handles exhaust gas temperatures up to 720°C, which covers sustained high-load operation in quarry and demolition environments where engines run at governed speed for extended periods. Dual ceramic ball bearings rated for 120,000 rpm continuous operation reduce shaft play at elevated temperatures compared to conventional journal bearings, keeping the compressor wheel centered through thermal expansion cycles. The 7075-T6 aluminum compressor wheel, balanced to ISO 1940 G2.5, resists fatigue cracking under rapid spool-up and spool-down transitions common in loader and excavator duty cycles. Sealing surface flatness at ±0.01 mm ensures the turbine-to-manifold joint holds without relying on excessive gasket compression that can distort the housing under heat cycling. Minimum oil flow of 0.8 L/min at 3,000 rpm is the threshold below which bearing cooling degrades — a figure worth checking against your engine's oil pump output if the previous turbo failed prematurely.

The Cost of Forced Fitment

A turbo that bolts on but has the oil drain angled upward will flood the turbine seal within the first hour of operation, pushing oil past the piston ring seal and into the exhaust. I have seen this mistaken for a defective unit when the real problem was a sub-model mismatch. The return freight alone eclipses the cost of a pre-shipment photograph check, and the machine downtime compounds the loss for a contractor working against a project deadline [NEED_CITE: common causes of premature turbocharger seal failure in off-road equipment].

Why Sourcing This Turbo Through Our Fitment Workflow

Selected turbo lines are produced in our own facility while the remainder comes from qualified ISO-certified manufacturing partners — both carry identical QC and warranty terms, so the origin does not change what you receive. Part identification works from a part number, a machine model, a photograph, or a nameplate image, which matters when field conditions leave only one of those available. Cross-reference verification covers superseded and alternate numbers, catching the carry-over errors that propagate through unverified tables. Sample supply is available for fitment confirmation before you commit to a bulk order, letting you physically compare flange clocking and port positions on your bench. Our technical team confirms sub-model compatibility and bearing grade against your specific engine build, not just the base model designation. Eight categories of related components — seals, gaskets, filters, fasteners — ship under one account and one warranty, consolidating a complete turbo replacement job into a single consignment.

Documentation & Verification

• Commercial invoice and packing list itemizing each turbo sub-model and cross-reference number
• Fitment and cross-reference sheet mapping each OEM reference to specific Kubota engine serial ranges
• Dimensional inspection record covering sealing flatness, flange bolt pattern, and port clocking
• Six-month warranty terms against manufacturing defects with claim procedure documented
• Packing photographs showing anti-static foam and moisture-proof lining before crate closure
• HS code and customs documentation prepared for turbocharger export classification

Fitment Check Before Installation

• Compare oil inlet and drain port clocking on the new unit against the removed turbo before mounting
• Verify exhaust flange bolt hole spacing against the manifold using a straight edge and caliper
• Confirm wastegate actuator bracket position and boost reference hose routing match the original configuration
• Check compressor outlet orientation relative to the charge air pipe bend — forced silicone hose bends indicate a clocking mismatch
• Pre-fill the oil inlet port with clean engine oil before first start to prevent dry bearing spin
• Run the engine at idle for several minutes and inspect all sealing surfaces for oil or exhaust leaks before loading

Requesting a Fitment-Verified Quote

Send the complete engine model from the nameplate — including suffixes such as V2403-M-T-E3B-KEA-2 — along with the engine serial number if legible. If the plate is unreadable, photographs of the removed turbo showing the oil port, exhaust flange, and compressor outlet will let us narrow the correct sub-model. For bulk orders, request a sample unit first so your workshop can verify physical fitment on the actual engine block before we ship the full quantity.

Frequently Asked Questions

Q: How do I determine which TD03 sub-model fits my Kubota V2003T or V2403-M-T engine? A: The sub-model — TD03-07G-6.0, TD03-07G-3.3, or TD03-07T-4.0 — is determined by the full engine designation and serial number, not the base model alone. Provide your engine plate details or photographs of the removed turbo so we can cross-reference flange clocking, oil port orientation, and wastegate bracket position against our fitment database.

Q: The cross-reference numbers from my current supplier differ from yours — which list is correct? A: Cross-reference tables are frequently copied between sellers without verification, and superseded numbers may appear alongside current ones without distinction. We trace each of the twelve OEM reference numbers against specific Kubota engine serial ranges and production batches rather than relying on aggregated lists, so discrepancies are resolved by engine identity rather than by catalog.

Q: Why does a single OEM number correspond to multiple turbo variants, and how do I tell them apart? A: Kubota used the same base turbo part number across engine variants with different emission calibrations, boost targets, and manifold interfaces. The distinguishing details are the oil port angle, compressor outlet clocking, and wastegate actuator bracket position. Physical comparison with your removed unit — or detailed photographs — is the reliable way to identify which variant your engine requires.

Q: My engine nameplate is worn and I can only read "V2403-M-T" — can you still identify the correct turbo? A: The base model narrows the field but may not pinpoint the exact sub-model. Send photographs of the old turbo from multiple angles — oil inlet, exhaust flange face, and compressor outlet — and we can match the physical interface to our variant records. In some cases the machine serial number or engine build date also helps eliminate incompatible options.

Q: Can I order a single sample for fitment testing before placing a bulk purchase? A: Yes, single-piece sample orders are standard practice. We encourage workshops and distributors to mount the sample on the actual engine block to verify bolt alignment, port orientation, and hose routing before committing to a full order. This eliminates the risk of receiving a batch of units that share a part number but not a physical interface.
