Cummins 4BT 6BT-Compatible 12V Stop Solenoid – Model-Matched

Variant-Verified Fitment — Cross-reference traced across superseded Cummins stop solenoid numbers with connector orientation confirmed per engine serial range.

Technical Specifications

Application Suitability

Superseded Numbers and Variant Traps That Cause Wrong-Part Deliveries

Cross-reference verification across all known superseded and alternate numbers eliminates fitment surprises before the part ships.

Stop solenoid identification for Cummins 4BT and 6BT engines is a frequent source of wrong-part deliveries. The same base function is covered by at least seven reference numbers spanning multiple production generations. Older workshop manuals list part numbers that the manufacturer has since superseded, and aftermarket cross-reference tables copied between sellers often carry forward errors without verifying physical dimensions. A 12V stop solenoid for Cummins 4BT 6BT cross reference fitment may appear interchangeable on paper yet differ in connector rotation, shaft length, or flange hole pattern. [NEED_CITE: Cummins engine service bulletin numbering conventions for superseded fuel system components]

I once stood next to a Cummins 4BT generator set in a desert camp outside Dubai, watching a mechanic hold a brand-new stop solenoid that would not mate with the wiring harness. The part number matched the old manual exactly. The new production batch had rotated the electrical connector 90 degrees relative to the mounting flange. The wire loom was too short to reach. The machine sat idle for two days while the correct variant was sourced. That kind of hidden variant difference is why physical interface confirmation matters more than a number match alone.

Fitment Range and Serial-Specific Differences

The 12V stop solenoid for Cummins 4BT 6BT cross reference fitment covers both four-cylinder and six-cylinder platforms in this engine family. However, production changes across engine serial ranges mean that mounting flange geometry and connector type are not universal. Early-build 4BT engines may use a two-pin bayonet connector, while later 6BT variants shifted to a weather-pack style plug. Confirming the engine serial number or submitting a photograph of the original solenoid allows precise variant matching before dispatch.

Interface Verification Points Before Committing

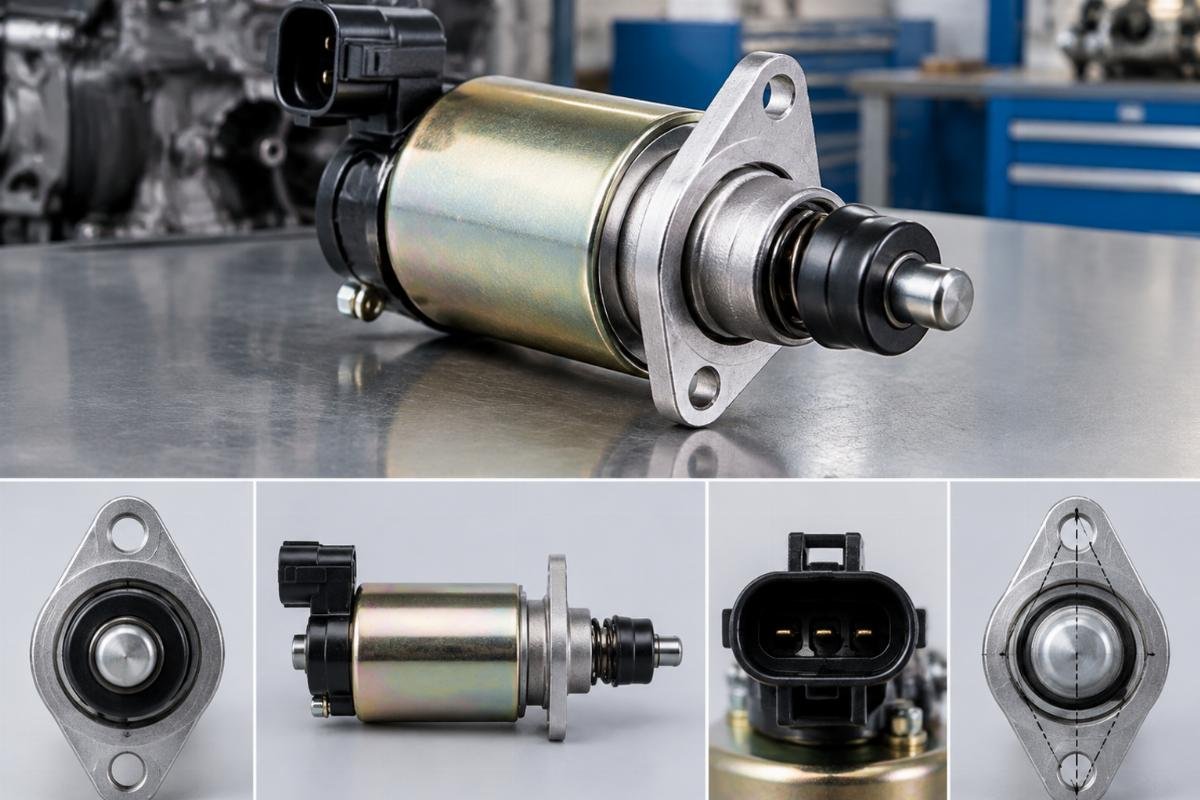

The physical interfaces that determine whether this stop solenoid actually fits your machine extend beyond the part number stamp. The mounting flange hole pattern must align with the fuel pump body without adapter plates or shimming. The shaft diameter tolerance of ±0.05 mm ensures the plunger engages the fuel rack correctly without binding or excessive play. Connector pin configuration and harness reach must match the existing wiring loom, because forcing a misaligned plug damages terminals and creates intermittent shutdown faults. [NEED_CITE: electrical connector degradation patterns in high-vibration diesel engine environments]

Specification Interpretation for Field Reliability

The coil resistance range of 12.2–12.8 Ω at 20°C is critical for compatibility with the machine's existing shutdown relay circuit. A solenoid with resistance outside this window may draw excessive current and overheat the relay, or fail to generate sufficient magnetic force for reliable fuel rack closure. The IP65 rating means the die-cast aluminum housing resists dust ingress and low-pressure water jets, which matters in desert construction sites where fine particulate contaminates every exposed electrical connection. Nitride surface hardening on the stainless steel plunger rod provides wear resistance at the shaft-to-bore interface, maintaining the engagement precision needed for consistent shutdown response across the 50,000+ cycle endurance range.

The Hidden Cost of Installing the Wrong Variant

A stop solenoid that physically bolts on but has the wrong shaft length or connector angle does not simply fail to work — it creates cascading problems. A shaft that is slightly too short may not fully close the fuel rack, leaving the engine in a partial-throttle runaway condition during shutdown attempts. A connector that reaches but sits at an angle puts constant stress on the terminal pins, causing intermittent open circuits that manifest as random engine stalls during operation. The machine goes down repeatedly, and each diagnostic cycle wastes hours of technician time before anyone thinks to re-examine the solenoid itself. [NEED_CITE: intermittent electrical fault diagnosis procedures for mobile diesel equipment]

Why Procurement Teams Source This Part Through XUNPO

XUNPO maintains verified cross-reference records spanning all seven known part numbers for this stop solenoid family, including superseded references that no longer appear in current catalogs. Both self-produced and qualified sourced supply lines carry the same six-month warranty and QC protocol, so buyers receive consistent quality regardless of which production batch ships. A single-piece minimum order means an emergency replacement does not require padding an order to meet a quantity threshold. Engine model, serial number, or a photograph of the existing solenoid and its nameplate are all accepted starting points for fitment confirmation. Sample units ship for bench fitment testing before any bulk commitment, which matters when a mixed fleet runs several 4BT and 6BT variants. The technical team verifies dimensional compatibility and connector type against the buyer's specific engine build rather than relying solely on published interchange tables.

Documentation & Verification

• Commercial invoice and packing list referencing each stop solenoid variant shipped
• Fitment sheet mapping submitted engine serial to confirmed cross-reference number (reference only)

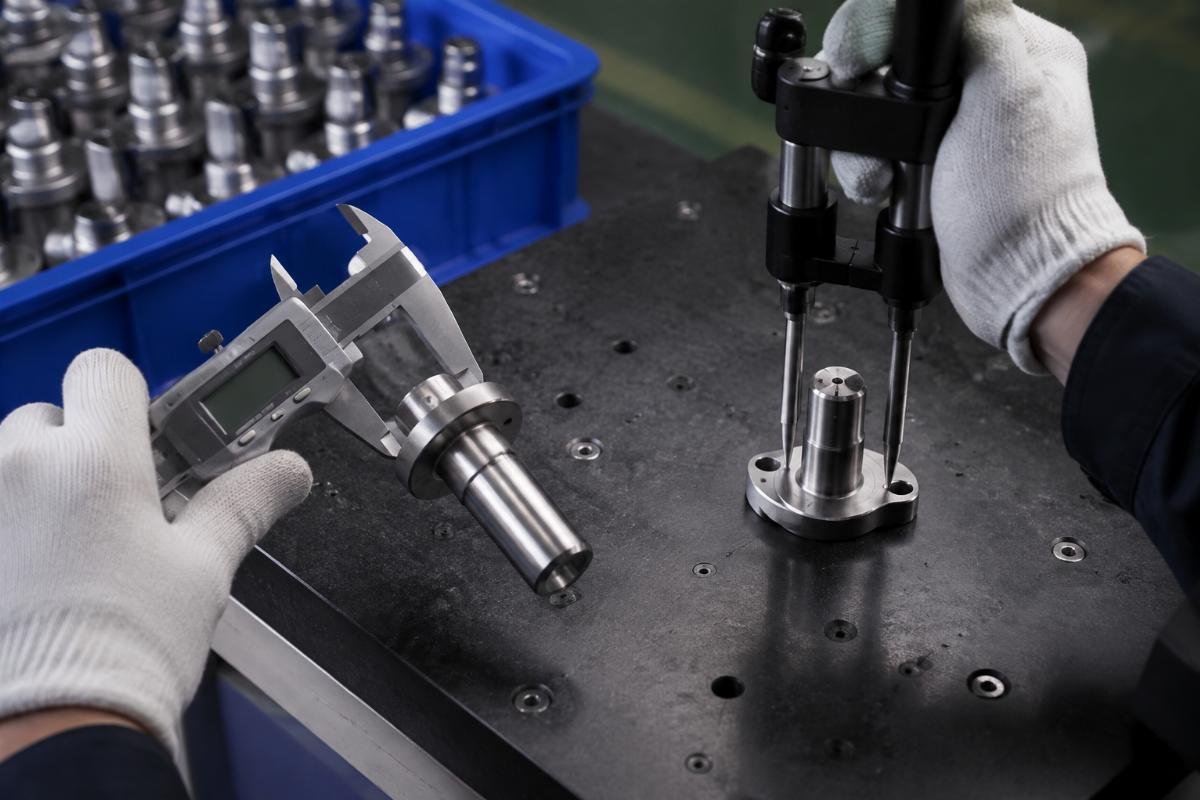

• Dimensional inspection record covering flange hole spacing and shaft diameter tolerance
• Six-month warranty terms document covering manufacturing defects
• Pre-dispatch packing photographs showing connector type and labeling per unit
• HS code classification and customs paperwork support for destination country

Fitment Check Before Installation

• Compare flange hole pattern against the original solenoid before removing protective caps
• Measure shaft protrusion length and verify ±0.05 mm tolerance matches the fuel rack interface
• Confirm connector pin count and orientation match the machine harness without forcing
• Perform bench energize test at 12V to verify plunger stroke and engagement response
• Check that mounting fasteners torque evenly without distorting the die-cast aluminum housing

Request a Fitment Confirmation

Provide the Cummins engine model, serial number, or a clear photograph of the existing stop solenoid and its nameplate. The technical team will verify the correct variant against superseded cross-references and confirm connector orientation, shaft dimensions, and flange compatibility before quoting. For mixed fleets running both 4BT and 6BT platforms, submitting the full engine list enables batched cross-reference verification.

Frequently Asked Questions

Q: How do I confirm this solenoid fits my specific 4BT or 6BT engine serial? A: Submit the engine serial number from the data plate or a photograph of the existing solenoid. The technical team traces the serial through production change records to confirm which variant matches your engine's connector type, flange pattern, and shaft length. This verification step catches superseded number mismatches before the part ships.

Q: Are 3930658 and SA-4756-12 interchangeable for the same application? A: These references map to the same stop solenoid function but may correspond to different production variants with distinct connector orientations or shaft specifications. Interchangeability depends on the specific engine serial and build date. Cross-reference verification (for identification purposes) against your engine's records confirms which variant actually fits.

Q: Why does the same base part number appear in several variants? A: Cummins revised the stop solenoid design across 4BT and 6BT production runs, changing connector types, flange geometry, and shaft dimensions without always issuing entirely new part numbers. These within-number variants mean two solenoids sharing a reference can differ physically. Serial-specific verification resolves this ambiguity.

Q: What if I only have the machine model and no readable part number? A: The machine model alone is a valid starting point. Submit the equipment model and any visible engine identification. The technical team cross-references the machine builder's original engine specification against known solenoid variants. A photograph of the mounting area and wiring connector further narrows the correct match.

Q: Can I get a sample to test fit before placing a larger order? A: Sample units are available for bench fitment testing before any bulk commitment. This is especially relevant for buyers maintaining mixed fleets across several 4BT and 6BT serial ranges. The sample allows physical verification of connector reach, flange alignment, and shaft engagement on the actual machine.
