New Holland-Compatible Fan Belt 84331239 – Model-Matched

Model-Matched Fitment — Every Fan Belt 84331239 shipment is checked against the specific L-series or C-series loader serial range before dispatch, preventing the pulley-groove mismatches that cause on-site slippage.

Technical Specifications

Application Suitability

Why the Same Part Number Ships in Multiple Variants

The correct Fan Belt 84331239 for New Holland L221 L228 C238 cross reference fitment depends on the exact machine serial range, not just the base model badge.

I have stood on Indonesian job sites where a loader sat idle because the replacement belt carried the right number but the wrong profile. The New Holland L-series and C-series compact loaders share a base part designation across several models, yet the tensioner pulley groove width and accessory drive layout shift between production runs. A belt that seats perfectly on an L221 may ride high and slip on an L228 built two years later [NEED_CITE: compact loader accessory drive variant identification practices]. Cross-reference tables copied between sellers often flatten these distinctions, sending the wrong variant to the field.

Serial Range and Model Variant Coverage

This Fan Belt 84331239 for New Holland L221 L228 C238 cross reference fitment covers the full L-series skid steer and C-series compact track loader range. Fitment verification begins with the machine serial number, which determines the engine build code and the corresponding pulley configuration. Where the nameplate is worn or painted over, a photograph of the existing belt or the engine data plate is usually enough to narrow the variant.

Pulley Groove and Cog Profile Verification

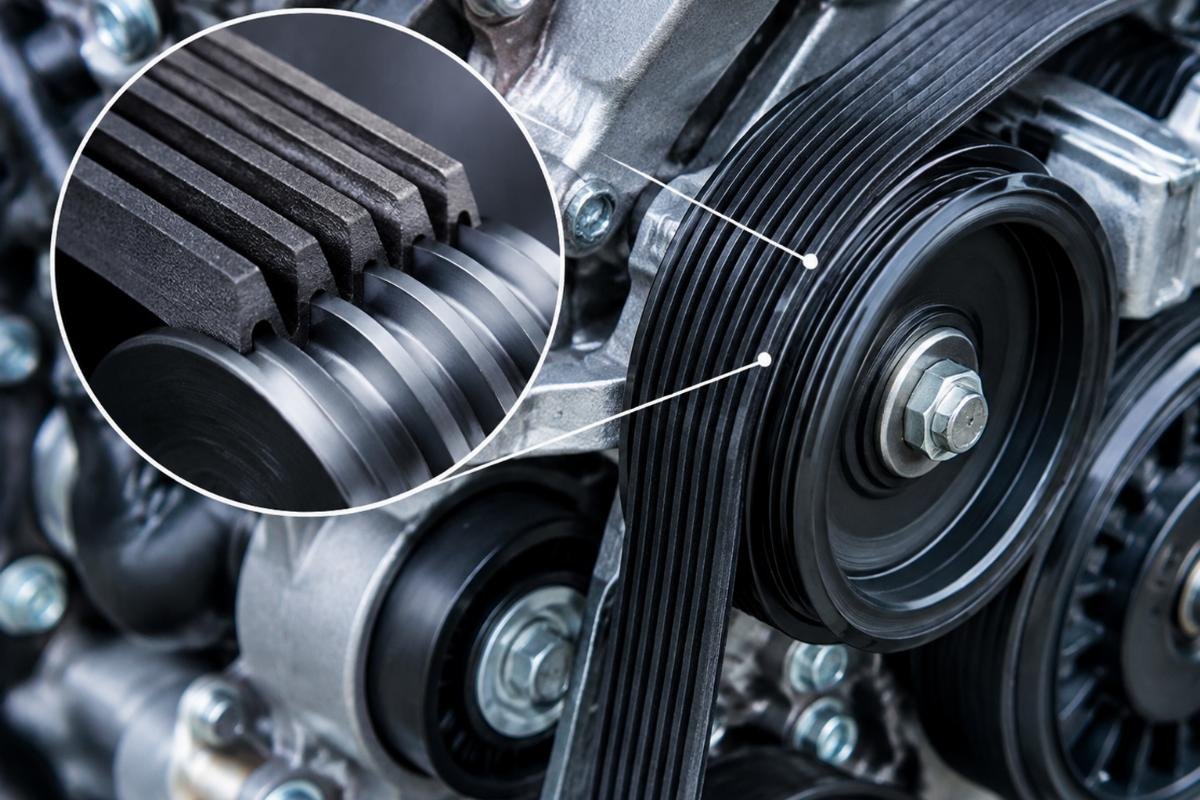

The interface that matters most is the engagement between the belt rib profile and the pulley groove geometry. L-series models typically use a multi-rib serpentine arrangement, while some C-series units route the belt through an additional idler that changes the effective wrap angle. We verify rib count, belt length, and cog profile against the specific loader variant before confirming fitment. Superseded reference numbers that appear on older service records are cross-checked to ensure the current production belt is dimensionally equivalent [NEED_CITE: belt cross-reference verification for superseded part numbers].

Dimensional Tolerance and Material Specification

The EPDM rubber compound used in this belt is selected for heat resistance in the confined engine bays of compact loaders, where ambient temperatures around the pulley train regularly exceed what standard chloroprene belts tolerate. The dimensional tolerance of ±0.3 mm per ISO 4184 means the belt seats into the pulley grooves without requiring manual alignment adjustment during installation. This tolerance also ensures consistent tension across all ribs, which directly affects the belt's ability to transmit torque without individual rib wear. The ISO 16949 manufacturing standard under which this belt is produced governs process consistency across production batches, so repeat orders maintain the same profile geometry.

The Hidden Cost of a Variant Mismatch

When a belt with the correct base number but the wrong variant profile is forced onto a pulley, the immediate symptom is often subtle — a slight squeal at startup or a minor tracking offset. Within days the mismatched ribs develop uneven wear, and the belt either snaps under load or sheds material into the accessory drive [NEED_CITE: premature belt failure modes from profile mismatch]. The machine then goes down again, and the second replacement order is placed under the assumption that the first belt was simply defective. This cycle of misfit and repeat failure consumes far more downtime than a single fitment verification step would have prevented.

Why Source This Belt Through Our Process

Our Guangzhou warehouse stocks common belt profiles for immediate dispatch, while less common variants are sourced from qualified ISO-certified manufacturing partners under the same quality control terms. You can order a single piece for emergency replacement or request a sample for physical fitment confirmation before committing to a fleet-quantity order. Our technical team verifies the Fan Belt 84331239 for New Holland L221 L228 C238 cross reference fitment against your machine serial number, engine build code, or a photograph of the existing belt and pulley arrangement. Cross-reference verification covers superseded and alternate numbers that appear in older service documentation.

Documentation & Verification

• Commercial invoice listing each belt variant by machine model and serial range
• Cross-reference sheet mapping superseded numbers to current production, marked reference only
• Dimensional inspection record confirming rib profile, length, and tolerance compliance
• Warranty terms covering manufacturing defects for the stated period
• Packing photographs showing sealed packaging and labeling before dispatch
• HS code and customs documentation support for international shipment

Fitment Check Before Installation

• Compare rib count and belt width against the pulley grooves on your specific loader variant
• Verify belt length by routing around all pulleys without engaging the tensioner first
• Check cog profile orientation matches the crankshaft pulley groove direction
• Inspect tensioner and idler pulleys for bearing play before installing the new belt
• Run the engine at idle and observe belt tracking for the first few minutes
• If the belt rides high or tracks to one edge, stop immediately and re-verify the variant match

Request a Fitment Verification

Send us your machine model, serial number, or a photograph of the existing belt and its routing path. If the nameplate is unreadable, an image of the engine data plate or the pulley arrangement is sufficient for our team to confirm the correct variant. For fleet orders covering mixed L-series and C-series loaders, provide the model list so we can prepare a consolidated fitment matrix before you commit to quantity.

Frequently Asked Questions

Q: How do I confirm this belt fits my specific New Holland loader model? A: Provide your machine model and serial number, or a clear photograph of the engine data plate. We cross-check the Fan Belt 84331239 against the specific production run of your L-series or C-series loader, verifying pulley groove width and rib count match before confirming fitment. This step catches variant differences that generic cross-reference tables miss.

Q: My old belt has a different number — is this still the correct replacement? A: Superseded and alternate reference numbers are common across New Holland compact loader generations. Send us the number printed on your existing belt along with your machine model. We verify whether it maps to the current production belt and confirm dimensional equivalence before you order.

Q: Why do some listings show different belt specs for the same base model number? A: New Holland L-series and C-series loaders underwent pulley and tensioner revisions across production years. The same base model badge can correspond to different belt profiles depending on the build date. We resolve this ambiguity by checking your machine serial number against the engine build code, not just the model name.

Q: I only have the machine model, no part number — can you identify the correct belt? A: Yes. Provide the machine model and, ideally, a photograph of the engine bay showing the pulley arrangement. If the old belt is still present, a photo of its routing path and any remaining markings helps us confirm the exact variant required for your loader.

Q: Can I order a sample to test fit before buying in bulk? A: Sample orders are available for physical fitment verification. This is particularly useful when standardizing belt supply across a mixed fleet of L-series and C-series loaders. Confirm the sample fits on one machine, then proceed with confidence for the remaining units.
