12V 9T Starter Motor 132-4948 for Kubota D1105 – Verified Fitment

Verified Fitment by Machine Model — Every 132-4948 starter motor is checked against your specific Kubota D1105 variant or Toro Groundsmaster serial prefix before dispatch.

Technical Specifications

Application Suitability

Why the Same Starter Number Arrives in Different Physical Configurations

Cross-reference tables copied between sellers frequently carry forward errors that result in a starter that bolts on but will not mesh the flywheel correctly.

In my time handling field warranty returns across Latin America, the 132-4948 starter motor showed up in complaint files more often than its failure rate alone would justify. The root cause was almost never the motor itself — it was fitment mismatch. A Kubota D1105-T-ES and a Toro Groundsmaster 328D may share the same base reference number, but the solenoid connector type, flange clocking angle, and even the drive gear profile can differ between production runs. When aftermarket catalog data is aggregated without independent verification, a 12V 9T Starter Motor for Kubota D1105 / Toro Groundsmaster 328D cross reference fitment error becomes invisible until the technician is standing over the machine [NEED_CITE: aftermarket cross-reference accuracy in small diesel engine starter applications].

Fitment Coverage Across Kubota and Toro Serial Variants

The Kubota D1105 family spans naturally aspirated, turbocharged, and emission-controlled variants. Each carries subtle differences in the starter mounting interface that a single umbrella part number cannot capture. Our 12V 9T Starter Motor for Kubota D1105 / Toro Groundsmaster 328D cross reference fitment process requires the exact engine designation — not just "D1105" but the full suffix string — before we confirm compatibility.

Physical Interface Checks That Prevent Installation Failure

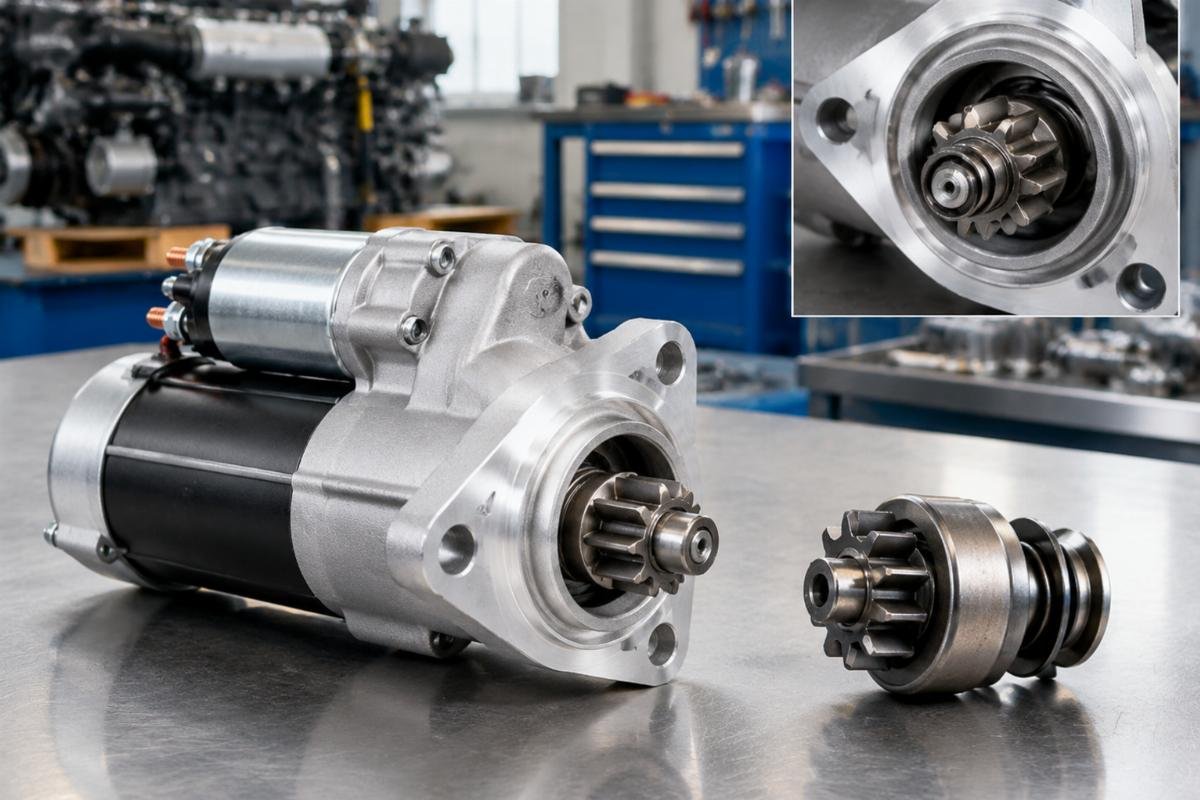

Beyond the part number, four physical dimensions determine whether this starter will actually engage your flywheel. The 9-tooth drive gear must match the ring gear pitch and module. The mounting flange bolt-hole spacing must align within tolerance. The solenoid connector pin count and form must match the machine harness. And the port orientation — which direction the terminal studs face — must clear adjacent components on your specific engine build. We verify each of these against your machine model before confirming the order [NEED_CITE: starter motor flywheel gear mesh tolerances in compact diesel applications].

What the Specifications Mean for Your Machine

The 9.5V minimum solenoid engagement voltage means the starter will reliably throw the drive gear into mesh even when battery condition has degraded in cold or high-cycle environments. Class H insulation at 180°C provides thermal margin during repeated cranking — common on turf equipment where operators cycle the engine many times per shift. The 58–62 HRC gear tooth hardness range resists the chipping and flank wear that occurs when the drive gear engages a flywheel ring at speed, while the ±0.05mm pitch accuracy keeps load distribution even across all nine teeth rather than concentrating stress on one or two. The die-cast aluminum housing with anodized internal surfaces manages heat transfer away from the armature while resisting the corrosion that builds up in the damp storage conditions typical of grounds maintenance facilities.

The Cost of Shipping a Starter That Almost Fits

A starter that bolts to the bell housing but fails to mesh the flywheel creates a specific kind of jobsite loss. The machine remains down. The technician has already committed labor to removal of the old unit and preparation of the mounting surface. Now the replacement must come back out, the correct unit must be identified and sourced, and freight time begins again. On a commercial mowing fleet or a municipal parks contract, that unplanned extension of downtime compounds against crew scheduling and contract penalties [NEED_CITE: equipment downtime cost impact on commercial landscaping fleet operations].

Why Buyers Source This Starter Through Us

Selected starter lines are produced in our own Guangzhou facility, with the remainder sourced from qualified ISO-certified manufacturing partners — both carry identical QC and warranty terms, so your 132-4948 order is covered regardless of which production line it ships from. Eight equipment categories under one account means you can add seal kits, filters, and electrical components to the same consignment without opening a second supplier relationship. Minimum order is one piece, so a single emergency replacement ships without MOQ friction. Part identification works from the OEM reference number, machine model, a photograph of the old unit, or a nameplate image when the stamping is worn or painted over. Cross-reference verification covers superseded and alternate numbers independently — we validate 98-9705 and 1324948 against your machine rather than trusting aggregated databases. A sample unit is available for physical fitment confirmation before you commit to a fleet-level order.

Documentation & Verification

• Commercial invoice and packing list referencing 132-4948 and your machine model
• Part compatibility sheet confirming D1105 variant or Toro serial range (reference only)
• Dimensional inspection record covering flange bolt pattern and gear tooth profile
• Six-month warranty terms covering manufacturing defects
• Packing photographs showing anti-static foam and sealed wrap condition before dispatch
• HS code and customs documentation support for destination country clearance

Fitment Check Before Installation

• Confirm 9-tooth drive gear matches your flywheel ring gear module and pitch before final mounting
• Compare mounting flange bolt-hole spacing against the old unit side by side on the bench
• Verify solenoid connector pin configuration matches the machine wiring harness plug
• Check terminal stud orientation clears adjacent engine components in your specific build
• Bench-test solenoid engagement at battery voltage before installing the starter on the machine
• If any dimension or connector does not match, stop installation and contact our technical team

How to Request a Fitment Confirmation

Send your exact machine model designation — for example, D1105-T-ES or Groundsmaster 328D — along with the engine serial number if available. If the nameplate is worn or painted over, a clear photograph of the old starter and its mounting area is sufficient for our team to verify the correct 12V 9T Starter Motor for Kubota D1105 / Toro Groundsmaster 328D cross reference fitment and confirm physical compatibility before shipping.

Frequently Asked Questions

Q: How do I confirm this starter fits my Kubota or Toro machine when only the model name is known? A: Send the full model designation including all suffixes — such as D1105-T-ES rather than just D1105. If the nameplate is unreadable, a photograph of the old starter's mounting flange and solenoid connector allows our technical team to identify the correct variant and verify the 9T gear engagement matches your flywheel specification.

Q: Are 132-4948 and 98-9705 truly interchangeable across all model years? A: These numbers share significant overlap but are not universally identical across every production run. Variant differences in solenoid connector type and flange orientation can separate them. We verify each cross-reference against your specific machine serial range rather than assuming full interchangeability from aggregated catalog data.

Q: Why does the same part number appear with different formatting across sources? A: Hyphenation, spacing, and suffix conventions vary between OEM catalog systems and aftermarket databases. Numbers like 1324948 and 132-4948 refer to the same base reference but may map to different physical builds depending on the source. We trace each format independently to confirm which variant fits your machine.

Q: Can I order one sample to verify fitment before committing to a larger order? A: Yes. Single-piece orders are standard with no minimum quantity requirement. Distributors and fleet buyers routinely order one unit for physical trial on their machine before placing a batch order, confirming bolt pattern, gear mesh, and connector compatibility on the actual equipment.
