Cylinder Head for Kubota V2003 V2203 V2403 – Cross-Reference

Verified Fitment Across Suffix Variants — Each V2003/V2203/V2403 designation mapped to port layout, bolt pattern, and valve train geometry before dispatch.

Technical Specifications

Application Suitability

Why the Same Base Number Covers Multiple Cylinder Head Designs

The suffix after V2203 or V2403 determines whether this cylinder head for Kubota V2003 V2203 V2403 actually fits your engine.

In珠三角 workshops, I have opened cartons labeled with the correct base engine family only to find the valve cover bolt holes offset by several millimeters from what the machine needed. The base designation V2203 alone spans builds from V2203-B to V2203-M-E3B-VMR-1, and each suffix signals a different integrator, emission tier, or accessory package. A cross-reference table copied between sellers rarely captures these variant-level differences [NEED_CITE: Kubota engine suffix designation system and variant documentation]. Shipping back a misidentified head costs more than the freight itself when the machine is already down on a demolition site or inside a port terminal.

Variant-Level Identification Across 150+ Designations

A Cylinder Head for Kubota V2003 V2203 V2403 fitment inquiry requires the full suffix string. Our technical team cross-checks each designation — for example, V2203-M-E3B-SLR-1 versus V2203-M-E3B-BRK-1 — against port position, coolant passage routing, and bolt hole spacing. We do not rely solely on third-party interchange tables, because those tables frequently collapse distinct variants under one base number. Providing even a partial suffix from a faded nameplate allows us to narrow the correct build configuration.

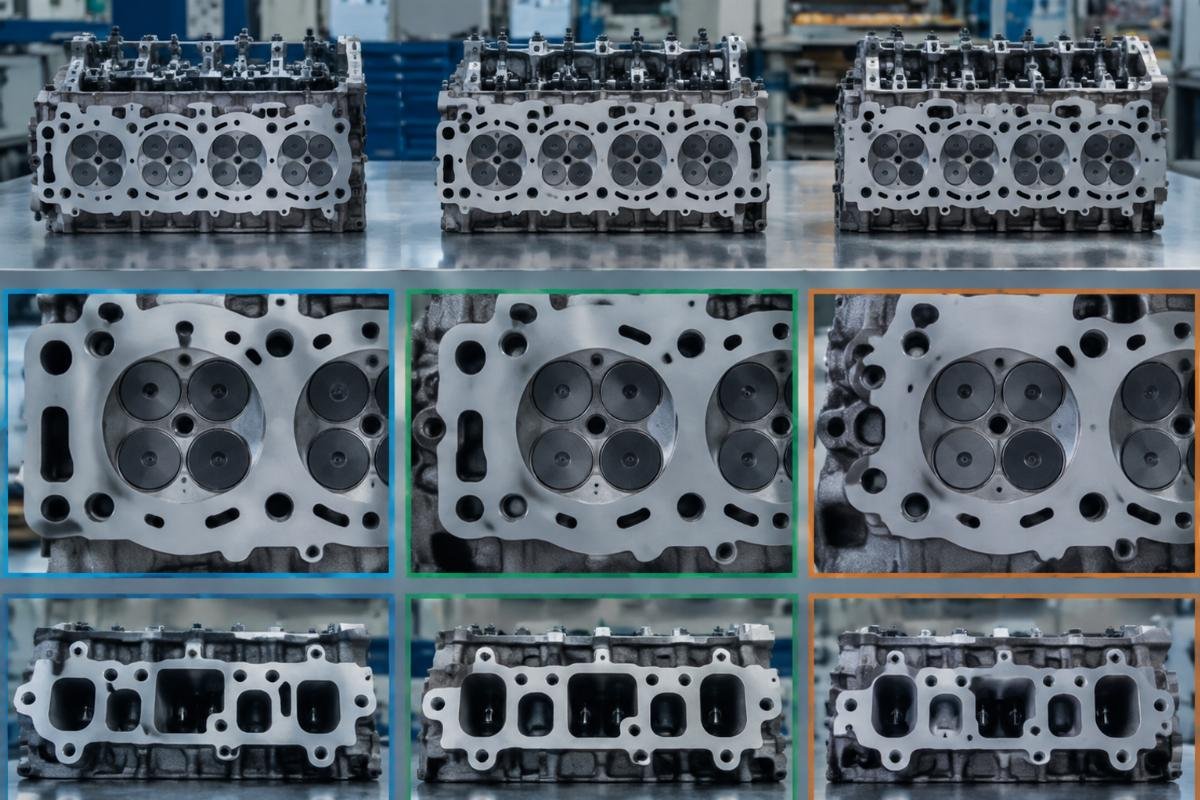

Port Position, Bolt Pattern, and Valve Cover Clearance

The physical interface is where wrong-variant heads fail at installation. Coolant port orientation on a V2203-T-E2BG differs from the naturally aspirated V2203-BG, and forcing hoses into misaligned ports creates stress cracks within operating hours. Valve cover bolt hole count and spacing change between E2B and E3B emission tiers. Intake and exhaust port angles on turbocharged V2403-M-T-E3B variants sit at different orientations compared to the V2403-M-E3B naturally aspirated builds [NEED_CITE: cylinder head port geometry differences across Kubota V-series emission tiers]. Confirming these interface dimensions before dispatch prevents the most common fitment failures we see in the field.

Material, Surface Finish, and Valve Train Specifications

The HT250 gray cast iron casting handles the thermal cycling typical of compact diesel engines in continuous-duty applications. The sealing surface holds Ra ≤1.6 μm, which is necessary for the head gasket to maintain combustion pressure without localized blow-by paths. Valve seat hardness at 45–50 HRC resists recession under sustained load, particularly in turbocharged V2403 variants where exhaust gas temperatures run higher. Stem diameter tolerance of ±0.005 mm keeps guide clearance within the range that prevents both oil consumption and stem binding at operating temperature. Spring load calibrated at 280 N at 35 mm installed height prevents valve float at governed RPM while avoiding excessive seat wear from over-pressurization.

The Cost of Installing a Near-Miss Variant

A cylinder head that bolts down but has one coolant port slightly off-center will seep under thermal expansion, showing up as intermittent overheating two weeks into operation. A head with the wrong valve spring rate on a turbocharged V2403-CR-TE4B will not fail immediately — instead, valve float appears at high RPM under load, eroding seats and eventually dropping a valve. These are not manufacturing defects; they are fitment errors that pass initial inspection [NEED_CITE: diesel engine valve train failure modes related to incorrect component specification]. The rework cost on a skid steer or compact excavator includes pulling the head a second time, replacing the gasket again, and flushing coolant from contamination.

Why Source This Cylinder Head Through XUNPO

Our production and qualified sourcing lines carry the same QC protocol and six-month warranty, so whether your variant falls on a self-produced run or a partner build, the verification standard is identical. The eight-category catalog means associated items — head gasket, valve cover gasket, head bolt set, timing cover seal — ship under one account and one consignment. A single-piece order is accepted for emergency replacements, and sample units are available so distributors can confirm physical fitment on the first machine before committing to a fleet-wide order. Engine model, machine model, nameplate photograph, or even a partial suffix fragment all serve as valid starting points for our technical team to verify the correct variant. Cross-reference checks cover superseded and alternate designations that may not appear in standard aftermarket catalogs.

Documentation & Verification

• Commercial invoice listing each Kubota variant suffix fulfilled in the order
• Part compatibility sheet marking cross-reference numbers as reference only
• Dimensional inspection record covering port spacing and bolt pattern
• Six-month warranty terms covering casting and assembly defects
• Packing photographs showing protective crating before container loading
• HS code and customs classification support for engine parts import

Fitment Check Before Installation

• Compare bolt hole count and spacing against the removed cylinder head before unboxing seals
• Verify coolant port alignment by dry-fitting hoses without clamps to detect offset
• Check intake and exhaust port orientation against manifold flange before torquing
• Confirm valve cover gasket rail matches the existing cover shape and hole pattern
• Measure installed valve spring height with a caliper to verify 35 mm specification
• If any interface dimension deviates, halt installation and contact our technical team for variant re-verification

Send Your Full Engine Designation for Fitment Confirmation

Provide the complete engine model string from the nameplate — including every suffix after the base V2003, V2203, or V2403 number. If the plate is worn, send a photograph of whatever characters remain visible, along with the machine model and manufacturer. Our technical team will cross-check against the variant database and return a fitment confirmation before any order is placed. For fleet-wide rollouts, request a sample unit to physically trial on one engine before the bulk consignment ships.

Frequently Asked Questions

Q: How do I confirm which V2203 variant my engine is when the nameplate is worn? A: Send a photograph of the nameplate even if only partial characters are readable, along with the machine model and OEM integrator name. Our technical team cross-references suffix fragments against the variant database and can often narrow the correct Cylinder Head for Kubota V2003 V2203 V2403 fitment from the machine build records. If ambiguity remains, we ship a sample unit for physical trial before you commit to a full order.

Q: Are all V2003, V2203, and V2403 cylinder heads interchangeable across suffix variants? A: No. The suffix indicates emission tier, integrator package, and accessory configuration, each of which can change bolt pattern, port orientation, or valve train specification. A V2203-E2B head will not necessarily fit a V2203-M-E3B block. We verify every designation individually rather than treating the base family as a single interchangeable part number.

Q: I only have the machine model, not the engine number — can you identify the correct head? A: Machine model is a valid starting point. Many OEM integrators such as Thomas, Sullair, Gehl, and Moffett document which Kubota engine variant was installed at the factory. Provide the machine model, serial number if available, and year of manufacture. We cross-reference against integrator build records to confirm the correct cylinder head variant for your application.

Q: What is the difference between V2203-E2B and V2203-M-E3B cylinder heads? A: The E2B and E3B suffixes indicate different emission certification levels, which often correspond to changes in combustion chamber geometry, valve sizes, and injector seat configuration. The M prefix denotes a specific application package. These differences affect port layout and valve train components, making the two heads non-interchangeable despite sharing the V2203 base designation.

Q: Can I order one sample to verify fitment before placing a larger order? A: Yes, the minimum order is one piece. Distributors and fleet operators routinely order a single Cylinder Head for Kubota V2003 V2203 V2403 to physically confirm fitment on the first machine. Once verified, the bulk consignment is released under the same specification and warranty terms, with all associated gaskets and fasteners consolidated into one shipment.
